16/05/2024

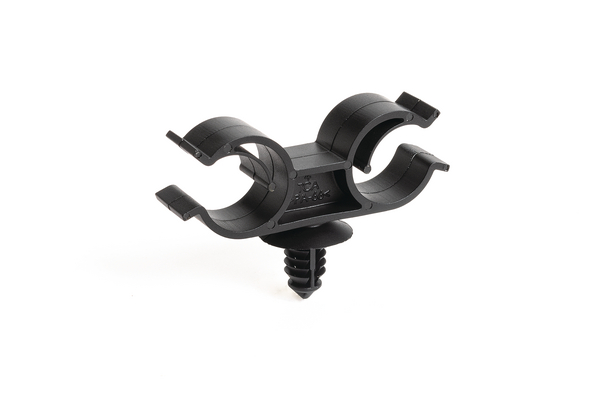

Cable clip for hole (round), T=0.6 - 6.0mm, Ø6.5 mm, Dmin=15.5mm, Dmax=15.5mm, black, 2000pcs.
Art.-Nr. 151-01310 | DUALFT6DOCK-PA66HIRHSUV-BK |  Details

    • For parallel routing of tubes and pipes
    • Easy to install
    • Post installation of tubes and pipes possible
    • Defined offset between the bundles
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Designed for the fast and easy parallel routing of two tubes or pipes. Both can be installed by hand. The fixing element inside assures a firm grip even with smaller diameters.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION DUALFT6DOCK-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in carton
    Type DUALFT6DOCK
    Attach to Ø 15.5
    Bundle Diameter max (metric) 15.5mm
    Bundle ∅ 15.5-15.5mm
    Bundle ∅ min. 15.5mm
    Height (H) 34.63mm
    Length (L) 51.8mm
    Nominal ∅ 15.5mm
    Panel Thickness max. 0.6 - 6.0mm
    Weight/Unit 0.01kg
    Width (W) 16.66mm
    for Hole ∅ (FH) 6.5 mm
    for Panel Thickness min - max 0.6 - 6 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026510859
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 20.82kg
    Packaging 3 - Width (m) 0.2921m
    Packaging 4 - Height (m) 1.269m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.218m³
    Packaging 4 - Weight (kg) 270.84kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
