For bundle diameters from 36.0 mm to 51.0 mm, D-Series
Art.-Nr. 151-03043 | RCD180SM6-PA66HIRHSUV/ST/ZN-BK Details

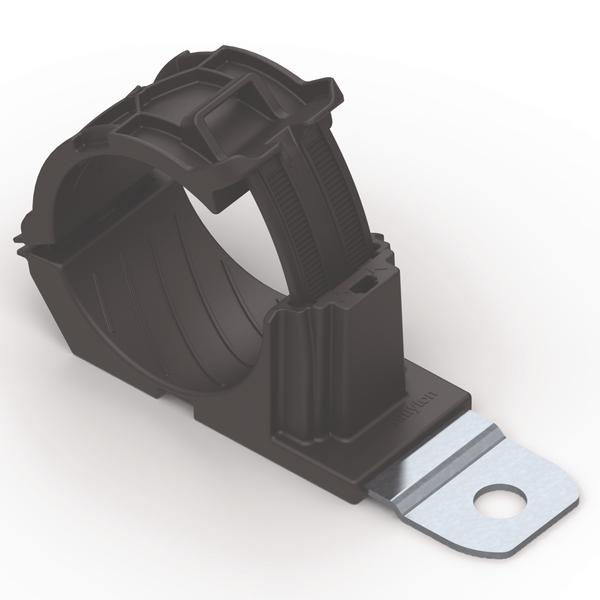

  • Ratchet P-Clamp D-Series for bundle diameters from 35.1 mm to 51.0 mm
  • One-piece ratchet closure design allows for easy installation during pre- or final assembly
  • Multiple configurations handle a wide range of diameters and applications, reducing part inventory
  • Clamp interior is designed to guide and center bundle to reduce pinching
  • Easy release feature allows for quick adjustments and maintenance
  • Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
  • Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray
Show more

Request your individual offer now

Application The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations.
Colour Black (BK)
Fixation Method Screw Mounting
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Steel (ST), Zinc plated (ZN)
Mounting Screw Type M6 Screw
Pack Cont. 20pcs.
Package Content packed in bag
Product Family For bundle diameters from 36.0 mm to 51.0 mm, D-Series
Product Group Ratchet P-Clamp
Variant Single-lobe clamp
Angle 180°
Bundle ∅ max. 51.0mm
Bundle ∅ min. 36.0mm
Fixing Hole Centres (F) 2.76"
Fixing Hole Centres (F) 70.0mm
for Hole ∅ (FH) 6.5 mm
Length (L) 181.5mm
Length (L2) 115.5mm
Min.Tensile Strength 445.0N
Stud ∅ M6
Width (W) 34.9mm
Width (W2) 30.0mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogenfree Yes
Operating Temperature - °C -40 °C to +105 °C
Plenum Rating AH-2
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E64139
UV-Stabilised (Yes/No) Yes
Country of Origin US
GTIN-13 / EAN 4031026630526
ETIM 7.0 Key EC000127
UNSPSC Key 39121702
