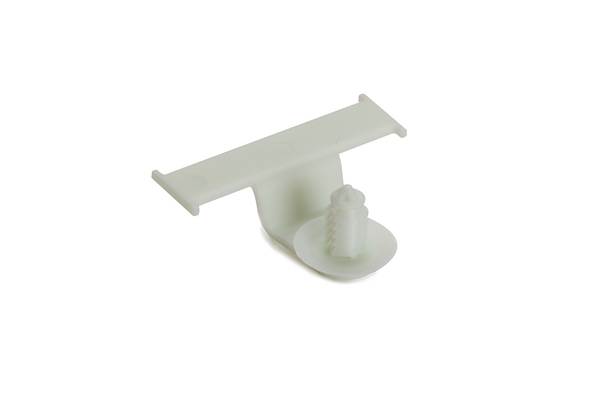

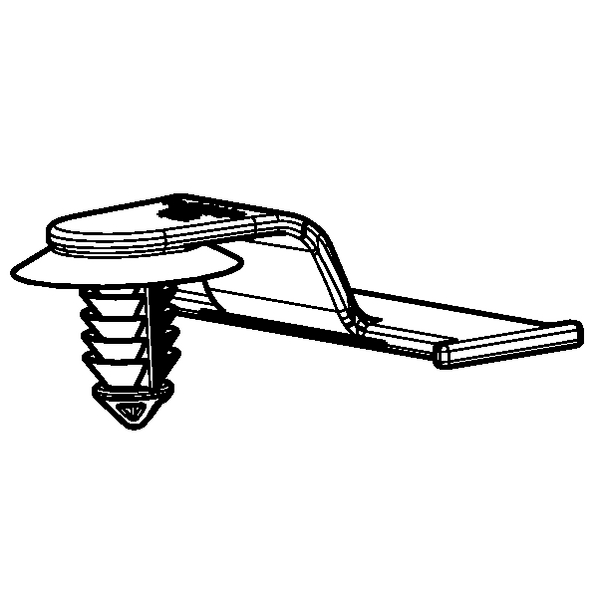

Bundling clip for hole (round), L=45.0mm, SO=20.3mm, natural, 2000pcs.
Art.-Nr. 133-01497
| SOC14FT6-PA66HIRHS-NA
|
Copied
- Clip can be installed by hand – no need for hardware or tools.
- Design provides low insertion and high extraction force, for simple, secure performance.
- Clip keeps bundle away from areas that could cause damage due to rubbing.
Request quote
| Application | Standoff bundling clips provide a straightforward way to secure cable bundles, hoses or pipes. The bundle fastens to the tape bar using tape or cable ties. Multiple orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standoff keeps bundles away from mounting area to prevent them from damage due to rubbing. |
| Colour | Natural (NA) |
| Fixation Method | Fir Tree |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | SOC14FT6-PA66HIRHS-NA |
| Package Content | 2000pcs. |
| Package Content packed in | pack |
| Type | SOC14FT6 |
| UV-Stabilised | No |
| Weight/Unit | 0.00189kg |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026482569 |
| Packaging 1 - Height (m) | 0.127m |
| Packaging 1 - Length (m) | 0.508m |
| Packaging 1 - Qty | 2000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.019612864m³ |
| Packaging 1 - Weight (kg) | 3.780001kg |
| Packaging 1 - Width (m) | 0.304m |
| Packaging 3 - Height (m) | 0.1397m |
| Packaging 3 - Length (m) | 0.51276m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0223m³ |
| Packaging 3 - Weight (kg) | 4.300001kg |
| Packaging 3 - Width (m) | 0.31115m |
| Packaging 4 - Height (m) | 1.145m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 56000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.099m³ |
| Packaging 4 - Weight (kg) | 142.4kg |
| Packaging 4 - Width (m) | 0.8m |
