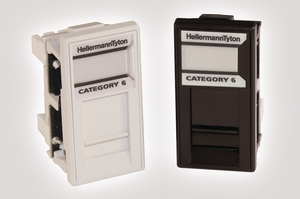

CAT6 Unshielded Euro 50x25mm Module - White
Art.-Nr. 852-05700 | HTC-C6U-EM50/WH |

Copied
Cat6 Euro Module.
Cat6 Euro Module.
Cat6 Euro Module.
HTC Series C6 Euro Module.
HTC Series C6 Euro Module.
HTC Series C6 Euro Module.
HTC Series C6 Euro Module.
HTC Series C6 Euro Module.

    • Category 6 component compliant
    • Footprint - Euro 50x25mm
    • Made from ABS + PC
    • Available in White
    • Compatible with HTC Series faceplates
    • Includes mini-zip ties and instructions
    • Plastic free packaging
    • Bulk packed reduce carbon footprint
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Colour White (WH)
    Description The HTC Series Category 6 unshielded modules are available in Euro Module and 6C sizes and are backwards compatible with legacy Category 5e, Category 5 and voice network infrastructures.
    The LJ6C Module Cat6 Outlet has a 38.5mm x 25mm footprint and can be fitted into our Zone Cabling Pod boxes.
    PART DESCRIPTION HTC-C6U-EM50/WH
    Performance Category Category 6 (Class E)
    Product Family 50 x 25mm - Flat - White
    Product Group CAT6 Unshielded Euro Outlet
    Short Description CAT6 Unshielded Euro 50x25mm Module - White
    Technical Description The HTC Series Category 6 unshielded Euro modules are designed to support Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 155 Mb/s ATM, Token Ring 4/16, voice/data systems and Voice over Internet Protocol (VoIP) systems running over a Category 6 cabling system and are backwards compatible with legacy Category 5e, Category 5 and voice network infrastructures.
    Type HTC-C6U-EM50/WH
    Depth (D) 18mm
    Height (H) 50mm
    Width (W) 25mm
    Country of Origin GB
    Dimensions W x H x D 25 mm x 50 mm x 18 mm
    GTIN-13 / EAN 5022660182532
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
    Show all
    Connectivity Products Connectivity Products

    Connectivity Products

    HellermannTyton is an established leader in the design, development and manufacture of innovative network infrastructure ...

    Connectivity Products >
    Art.-Nr.: 852-05700 Contact
    Base Data Product Dimensions Specifications Logistics and Packaging Downloads
    Downloads Datasheet
