BSPSW343B-PET-OG : BSPSW343B
Art.-Nr. 170-03084 | BSPSW343B-PET-OG |  Details

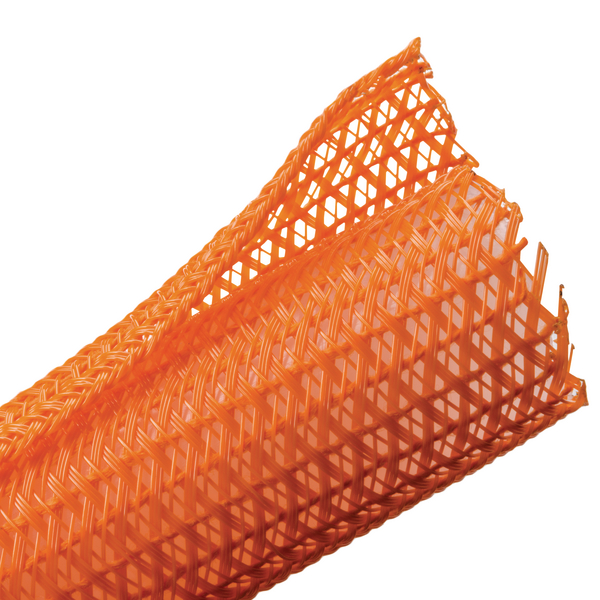

Expandable braided sleeving enlarges up to 150% of nominal diameter to accommodate irregular shapes.

    • Split wrap design installs quickly, saving assembly time and future accessibility without disassembly
    • Unique construction retains shape and rigidity throughout unrolling
    • Easy open design allows quick assembly, future access, and ability to apply protective sleeving post assembly or post installation situations
    Add to watchlist

    Request your individual offer now

     Request quote
    Colour Orange (OG), High Voltage (HV)
    Description A lateral split, semi-rigid and flame retardant braided sleeving configuration used when ease of installation and repeat access to wire bundle is required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements. The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires.
    Material Polyester (PET)
    Open, post termination (Yes/No) No
    Pack Cont. 30.48m
    Package Content packed in box
    PART DESCRIPTION BSPSW343B-PET-OG
    Bundle Diameter max (metric) 19.1mm
    Bundle ∅ 2.54-19.1mm
    Bundle ∅ min. 2.54mm
    Diameter (D) 19.1mm
    Length (L) 30.48m
    Nominal ∅ 19.1mm
    Nominal ∅ 0.75"
    Wall (WT) 0.64mm
    Wall (WT) 0.025"
    Weight/Unit 0.119kg
    ∅ D 0.75"
    Abrasion Resistance Medium
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Halogen-free Yes
    Hazardous Goods No
    Melting Point +250 °C
    Operating Temperature -70 °C to +125 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL-File Number E147924
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 58063210
    GTIN-13 / EAN 4031026440972
    Packaging 3 - Height (m) 0.356m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 61
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.058m³
    Packaging 3 - Weight (kg) 7.76kg
    Packaging 3 - Width (m) 0.279m
    Packaging 4 - Height (m) 1.212m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 732
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.164m³
    Packaging 4 - Weight (kg) 114.12kg
    Packaging 4 - Width (m) 0.8m
    Reel Length 30.5m
    Reel Length 100.0ft
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
