Gel, Silicone (SI) green/transparent, 10280ml
Art.-Nr. 435-00758
| Religel Plus E-SI-CL/GN
|
Copied
- Timesaving due to fast curing time
- Stable up to 200 °C
- Visual control of the homogenous mixture indicated by green-coloured component B
- Multiple use possible, mixing ratio 1:1
- Excellent flow and insulating properties
- Excellent moisture and chemical resistance
- Soft elastic, vibration absorbing and removable residue-free
Show more
Show less
Request quote
More products in this product group:

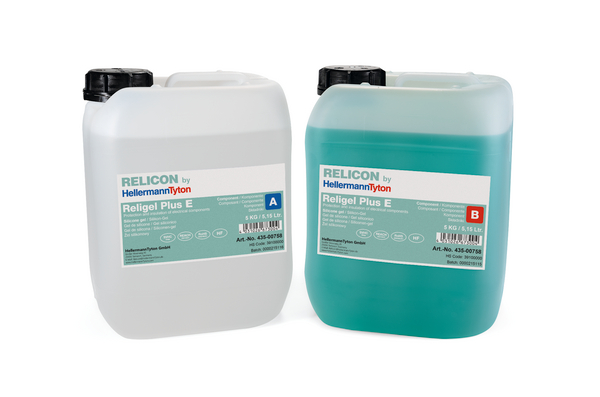

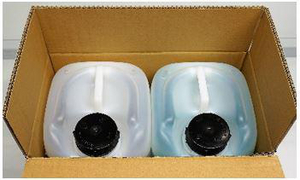

| Application | RELICON Religel Plus E is a green-transparent, elastic 2-component silicone gel. It is packed in 2x5 kg canisters. It is particularly suited to fill junction boxes for low voltage applications. Electrical insulation in low-voltage applications, Encapsulation of cables and wires in junction boxes, Building and household installations, Belowground, submerged. |
| Colour | Green (GN), Transparent (CL) |
| Density | 0.975 g/cm³ ISO 2781 |
| Key product features | vibration absorbing |
| Material | Silicone (SI) |
| PART DESCRIPTION | Religel Plus E-SI-CL/GN |
| Package Content | 10280ml |
| Package Content packed in | bulk |
| Pot Life | 15 min. 40°C, 30 min. 30°C, 60 min. 20°C |
| Product Family | Religel Plus |
| Product Group | RELICON Religel Plus |
| Removable | Yes |
| Short Description | Religel Plus E |
| Type | Religel Plus E |
| Viscosity | 850-1000 mPa*s (Test Method V18) |
| Weight/Unit | 10.5kg |
| Dielectric Strength | 30kV/mm |
| ELV compliant (Article 4 - 2) | Yes |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -60 °C to +200 °C |
| ROHS compliant | Yes |
| Shelf Life | Unlimited |
| Specifications |
|
| Specifications | IEC 60529, Edition 2.2, 2013-08 |
| Thermal Conductivity (max.) | 0.15W/mK |
| Thermal Conductivity (min.) | 0.15W/mK |
| Vibrations absorbing | Yes |
|
|
|
| Country of Origin | DE |
| Customs Number | 39100000 |
| GTIN-13 / EAN | 4031026673004 |

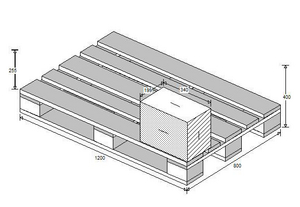

| Packaging 3 - Height (m) | 0.255m |
| Packaging 3 - Length (m) | 0.34m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0173m³ |
| Packaging 3 - Weight (kg) | 10.75kg |
| Packaging 3 - Width (m) | 0.199m |

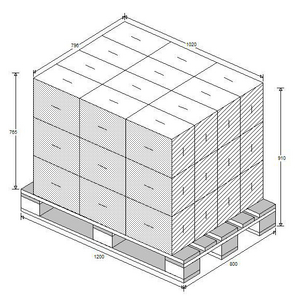

| Packaging 4 - Height (m) | 0.909m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.873m³ |
| Packaging 4 - Weight (kg) | 409.0kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | from +4 °C |
| Storage conditions | The storage in the original packaging is recommended. |
