15/07/2026

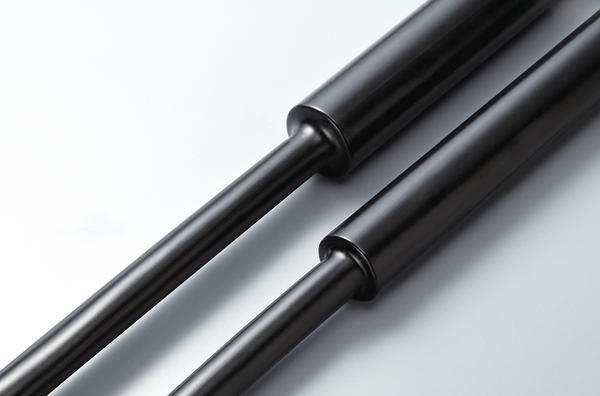

Heat shrinkable tubing 2:1


Art.-Nr. 302-00014

| TC26 1.0-PO-X-BK

 |

Copied

This product is not available anymore.

  • Thin wall polyolefin tubing
  • Bright shiny surface
  • Good resistance to common fluids and solvents
  • Low shrink temperature
  • Clear version offers excetional clarity

Application The bright shiny surface of TC26 ia an attractive covering for many automotive and customer-goods applications. Clear version offers excetional clarity to protect marked surfaces.
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION TC26 1.0-PO-X-BK
Package Content 300m
Package Content packed in reel
Product Family TC26
Product Group Heat shrinkable tubing 2:1
Shrink Ratio 2:1
Type TC26 1.0
Variant Thin-Wall
With inner glue (Yes/No) No
For Object Outside Diameter 0.7-1.3 mm
Length (L) 300m
Longitudinal Change After Shrinkage +/-5%
Recov. ⌀ d max. 0.5mm
Supplied ⌀ D min. 1.5mm
Tolerance +/- ±0.3%
Tube Shape Round
Wall (WT) 0.32mm
Wire Size Range (mm²) 0.6-0.9mm²
Dielectric Strength 25kV/mm
Elongation at break (min.) 500%
Halogen-free No
Min. Shrink Temperature - °C +90 °C
Operating Temperature -55 °C to +105 °C
ROHS compliant Yes
Specifications
Tensile Strength 10.4MPa
UL Listed (US and Canada) No
Volume Resistance 10¹⁴ Ω cm
Country of Origin CN
GTIN-13 / EAN 4944387952032
Reel Length 300m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
