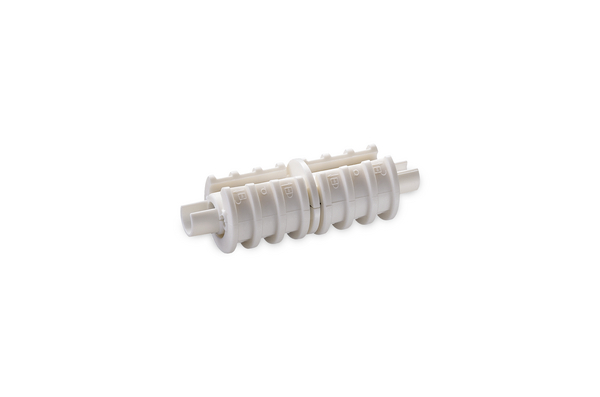

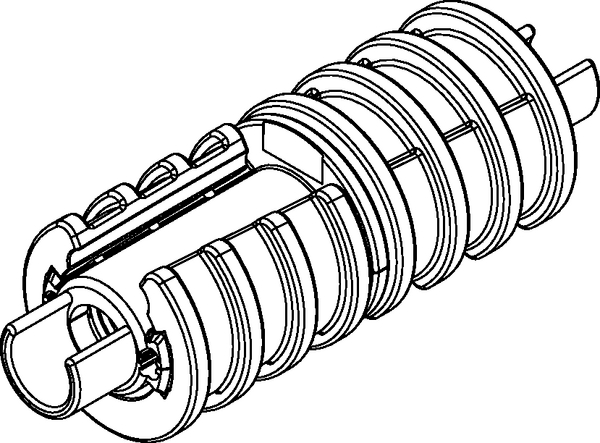

Divisible indoor connectors with gas-stop.
Art.-Nr. 873-00023 | EBM-GS_10/1.8-3.5_indoor-WH Details

  • gas- and water-tight up to 0.5 bar (also in longitudinal direction)
  • tensile and quick and easy to assemble
  • flame-retardant and halogen-free
  • designed for operating temperatures from 0 - 50 °C

Request your individual offer now

Application The hardly inflammable and halogen-free divisible connectors EBM-GS indoor have an integrated gas-stop. The divisible indoor connectors connect occupied speedpipe indoor.
Cable ∅ max 3.5mm
Cable ∅ min 1.8mm
Colour White (WH)
PART DESCRIPTION EBM-GS_10/1.8-3.5_indoor-WH
Pack Cont. 12pcs.
Package Content packed in carton
Product Family EBM-GS 10/1,8-3,5 indoor
Product Group Divisible indoor connectors with gas-stop.
Type EBM-GS_10/1.8-3.5_indoor
Diameter (D) 10mm
Country of Origin DE
GTIN-13 / EAN 4031051013363
Packaging 1 - Qty 12
Packaging 1 - Type carton
Packaging 2 - Qty 2520
Packaging 2 - Type pallet
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
