Divisible indoor connectors with gas-stop.
Art.-Nr. 873-00022 | EBM-GS_7/0.8-4.0_indoor-WH |

Copied

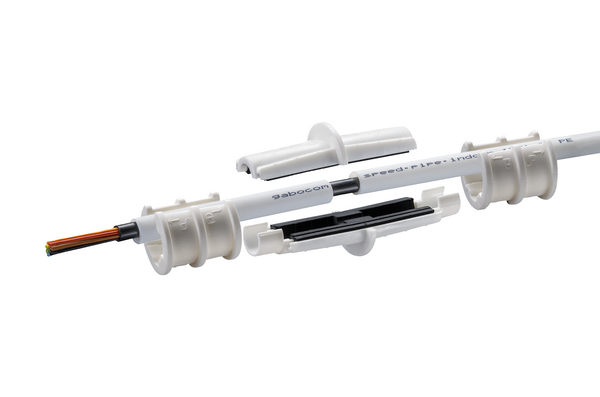

Divisible connectors with gas-stop EBM-GS to connect occupied speedpipe indoor.
Divisible connector with gas-stop EBM-GS 7 indoor

    • gas- and water-tight up to 0.5 bar (also in longitudinal direction)
    • tensile and quick and easy to assemble
    • flame retardant and halogen-free
    • designed for operating temperatures from 0 - 50 °C
    Add to watchlist

    Request your individual offer now

     Request quote
    Application The flame retardant and halogen-free divisible connectors EBM-GS indoor have an integrated gas-stop. The divisible indoor products connect occupied speedpipe indoor.
    Cable ⌀ max 4mm
    Cable ⌀ min 0.8mm
    Colour White (WH)
    PART DESCRIPTION EBM-GS_7/0.8-4.0_indoor-WH
    Package Content 12pcs.
    Package Content packed in carton
    Product Family EBM-GS 7/0,8-4,0 indoor
    Product Group Divisible indoor connectors with gas-stop.
    Type EBM-GS_7/0.8-4.0_indoor
    Diameter (D) 7mm
    Country of Origin DE
    GTIN-13 / EAN 4031051013356
    Packaging 1 - Qty 12
    Packaging 1 - Type carton
    Packaging 2 - Qty 2520
    Packaging 2 - Type pallet
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
