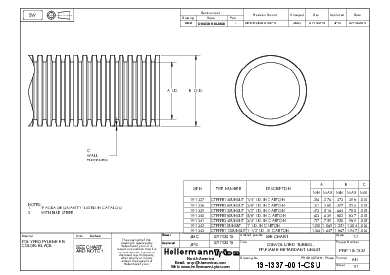

Corrugated tubing, nom⌀6.35mm, OD=10.20mm, ID=6.76mm, black, 762.0m
Art.-Nr. 169-60110 | CTPPFR140UNSLIT-PPFR-BK |

Copied
Flame retardant tubing provides full coverage where spiral wrap or other coverings may not be suitable.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black with Blue Stripe (BKSTBL)
    Material Polypropylene, flame retardant (PPFR)
    PART DESCRIPTION CTPPFR140UNSLIT-PPFR-BK
    Package Content 762.0m
    Package Content packed in carton
    Type CTPPFR140UNSLIT
    UV-Stabilised No
    Variant Unslit
    ⌀ (D2) 7.01mm
    ⌀ D 0.40"
    ⌀ D2 0.276"
    Diameter (D) 10.20mm
    Inner Diameter D (Imperial) 0.266"
    Inside ⌀ (ID) 6.76mm
    Length (L) 762.0m
    Nominal ⌀ 0.25"
    Nominal ⌀ 6.35mm
    Outside ⌀ (OD) 10.20mm
    Outside ⌀ (OD) 0.400"
    Outside ⌀ (OD2) 0.400"
    Outside ⌀ (OD2) 10.20mm
    Wall (WT) 0.102mm
    Wall (WT) 0.004"
    CE Certification No
    CSA Certified No
    Flammability Self-extinguishing in 60 seconds
    Halogen-free No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin CA
    GTIN-13 / EAN 4031026739694
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 13.608kg
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
