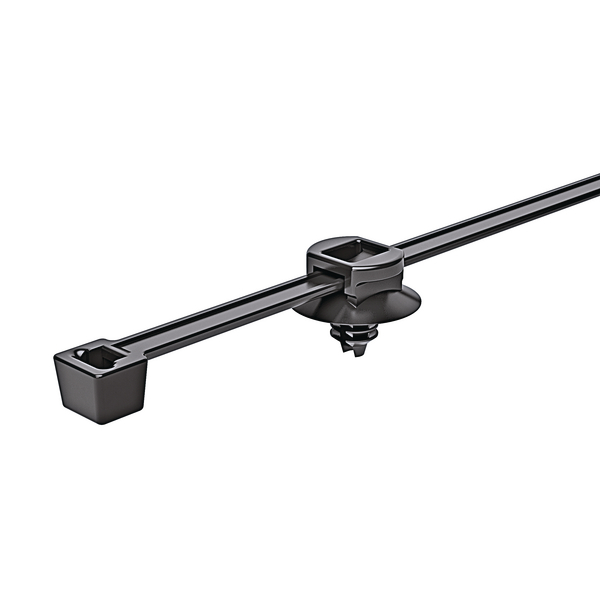

2-piece fixing ties with fir tree, with disc, for round holes
Art.-No. 920-30006 | IN5FT50-PA66HS-BK

Copied
  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Colour Black (BK)
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION IN5FT50-PA66HS-BK
Pack Cont. 1000
Product Family Fir tree parts FT5
Product Group 2-piece fixing ties with fir tree, with disc, for round holes
Type IN5FT50
Bundle ⌀ max. 45mm
Bundle ⌀ min. 4.0mm
Disc ⌀ 16.0mm
Height (H) 1.2mm

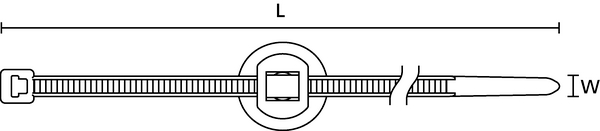

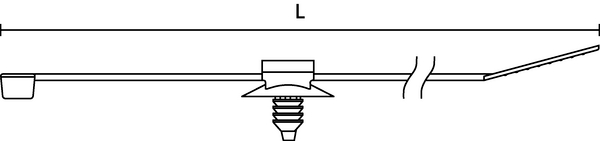

Length (L) 202mm
Length (L2) 11.6mm
Min.Tensile Strength 225N
Width (W) 4.6mm
for Hole ⌀ (FH) 4.5 - 5.0 mm
for Panel Thickness min - max 0.7 - 3 mm
