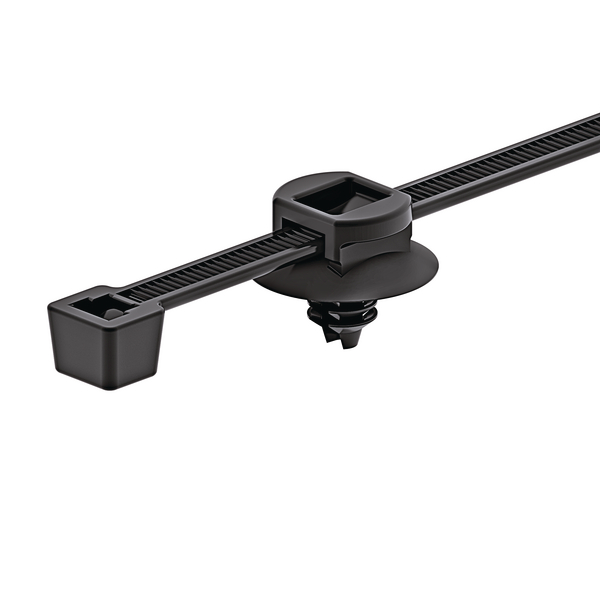

2-piece fixing ties with fir tree, with disc, for round holes
Art.-No. 920-30018 | T30RFT5-PA66HS/PA66HIRHS-BK |

Copied
These fir tree fixings can also be used in threaded, blind holes.

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity and ease of use has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Colour Black (BK)
    Description 2-piece fixing ties with fir tree, with disc, for round holes
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T30RFT5-PA66HS/PA66HIRHS-BK
    Package Content packed in bag
    Product Family Fir tree parts FT5
    Product Group 2-piece fixing ties with fir tree, with disc, for round holes
    Type T30RFT5
    Bundle ⌀ max. 34.0mm
    Bundle ⌀ min. 2.5mm
    Disc ⌀ 16.0mm
    Length (L) 150mm
    Min.Tensile Strength 135N
    Thickness (T) 1.1mm
    Width (W) 3.5mm
    for Hole ⌀ (FH) 4.5 - 5.0 mm
    for Panel Thickness min - max 0.7 - 3 mm
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C
    GTIN-13 / EAN 4031026659831
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
