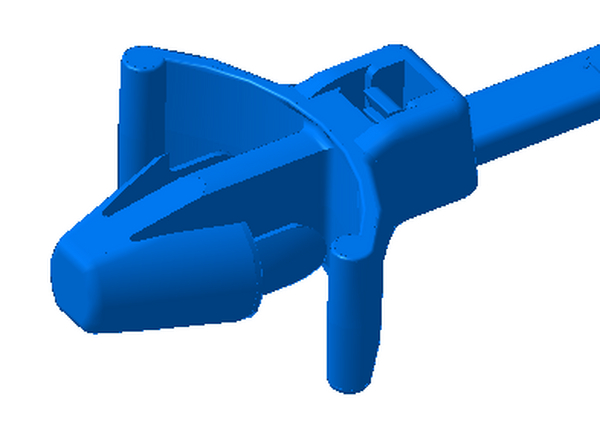

1-Piece Fixing Ties with Arrowhead, with Wings T18RWPM

1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes, Article number: 126-00077

Features

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited

Certifications & Approvals

Application

For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.

1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK7P, MK20, EVO7
Colour Black (BK)
Fixation Method Arrowhead
Identification Plate Position none
Pack Content 1000pcs.
Package Quantity per bag
PART DESCRIPTION T18RWPM-PA66-BK
Product Family 1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
Bundle ∅ max. 22.0mm
Bundle ∅ min. 1.6mm
Disc ∅ 13.2mm
for Hole ∅ (FH) 4.8 - 5.6 mm
for Panel Thickness min - max 1.5 - 3.2 mm
for Panel Thickness min - max 0.1 - 0.1 "
Height (H) 5.8mm
Length (L) 113.0mm
Min.Tensile Strength 80N
Panel Thickness 0.06 " – 0.13"
Panel Thickness max. 1.5 – 3.2mm
Panel Thickness max. (imperial) 0.13"
Panel Thickness min. (imperial) 0.059"
Thickness (T) 1.1mm
Width (W) 2.5mm
Width (W2) 6.4mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Material PA66
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 4031026338378
Packaging 3 - Height (m) 0.218m
Packaging 3 - Length (m) 0.599m
Packaging 3 - Qty 16000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0522
Packaging 3 - Weight (kg) 9.23kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.234m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 320000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.185
Packaging 4 - Weight (kg) 205.6kg
Packaging 4 - Width (m) 0.8m
