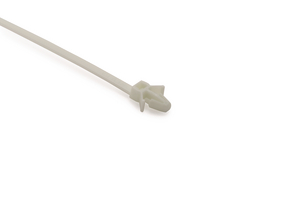

1-Piece Fixing Ties with Arrowhead, with Wings T18RWPM

1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes, Article number: 126-00078

Features

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited

Certifications & Approvals

Application

For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.

1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK7P, MK20, EVO7
Colour Natural (NA)
Fixation Method Arrowhead
Identification Plate Position none
Pack Content 1000pcs.
Package Quantity per bag
PART DESCRIPTION T18RWPM-PA66-NA
Product Family 1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
Bundle ∅ max. 22.0mm
Bundle ∅ min. 1.6mm
Disc ∅ 13.2mm
for Hole ∅ (FH) 4.8 - 5.6 mm
for Panel Thickness min - max 1.5 - 3.2 mm
for Panel Thickness min - max 0.1 - 0.1 "
Height (H) 5.8mm
Length (L) 113.0mm
Min.Tensile Strength 80N
Panel Thickness 0.06 " – 0.13"
Panel Thickness max. 1.5 – 3.2mm
Panel Thickness max. (imperial) 0.13"
Panel Thickness min. (imperial) 0.059"
Thickness (T) 1.1mm
Width (W) 2.5mm
Width (W2) 6.4mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Material PA66
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 4031026512839
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0025
Packaging 1 - Weight (kg) 0.472kg
Packaging 1 - Width (m) 0.145m
Packaging 3 - Height (m) 0.371m
Packaging 3 - Length (m) 0.414m
Packaging 3 - Qty 16000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0488
Packaging 3 - Weight (kg) 8.172kg
Packaging 3 - Width (m) 0.318m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 288000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 168.096kg
Packaging 4 - Width (m) 0.8m
Weight 0.472kg
