1-Piece Fixing Ties with Arrowhead : T30RSF
1-piece fixing ties with arrowhead 158x3.6 mm, heat stabilised, black, Article number: 126-00329
Features
- Easy to assemble without the need for a tool

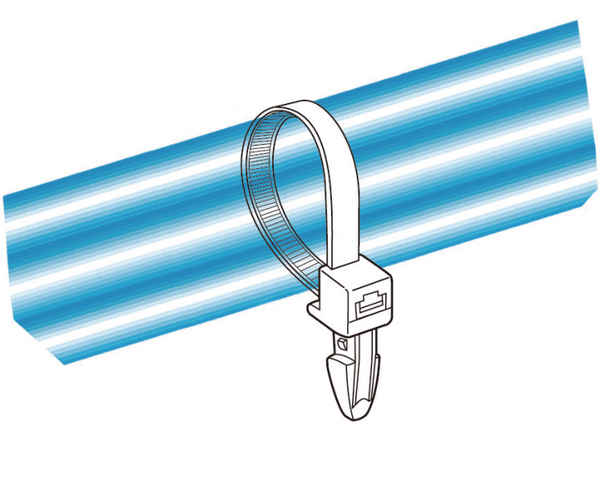

- Fixing tie with arrowhead without wings
- Arrowhead simply locks into place
- Cable tie head always situated in defined position
Certifications & Approvals
Application
The arrowhead design is usefull in areas with limited space.
1-Piece Fixing Ties with Arrowhead, without Wings and Disc, for round holes is suitable for following markets and industries
More products in this product group
1-Piece Fixing Ties with Arrowhead >| Application Tool | MK3PNSP2, MK3SP, MK20, EVO7 |
| Colour | Black (BK) |
| Fixation Method | Arrowhead |
| Identification Plate Position | none |
| Pack Content | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T30RSF-PA66HS-BK |
| Product Family | 1-Piece Fixing Ties with Arrowhead, without Wings and Disc, for round holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
|
|
|
| Bundle ∅ max. | 32.0mm |
| for Hole ∅ (FH) | 4.7 - 5.6 mm |
| for Panel Thickness min - max | 0.9 - 2.4 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
| Length (L) | 158.0mm |
| Min.Tensile Strength | 135N |
| Panel Thickness | 0.04 " – 0.09" |
| Panel Thickness max. | 0.9 – 2.4mm |
| Panel Thickness max. (imperial) | 0.094" |
| Panel Thickness min. (imperial) | 0.035" |
| Width (W) | 3.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Material | PA66HS |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275 |
| UL-File Number | E65344 |
|
|
|
| EAN / GTIN | 4031026599854 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00622m³ |
| Packaging 1 - Weight (kg) | 0.430635kg |
| Packaging 1 - Width (m) | 0.45m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 4.09508kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.235m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 80000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.186m³ |
| Packaging 4 - Weight (kg) | 102.88kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.4015kg |
