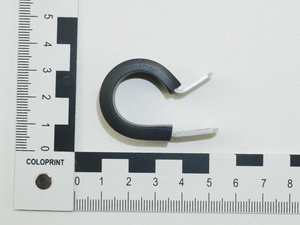

P-clamp closed, Dmax=19.1mm, ∅5.2 mm, black, 100pcs.
Art.-No. 211-15140 | ALU14C-AL/CR-BK Details

  • Simple and secure pipe or cable fixation
  • Can be combined with chloroprene rubber for vibration resistance
  • Ideal for use in high temperature applications
  • Suitable for applications needing strength of metal components

Request your individual offer now

Application Manufactured from a high quality aluminium, these metal P-Clamps provide flexibility whilst providing a permanent fixing in the most arduous of environments. The addition of a chloroprene insert provides the cable or pipe bundle with a high degree of protection against vibration, reducing noise and also providing electrical isolation. They are commonly used in caravan construction, the defence and railway industry as well as in the renewable energy sector.
Colour Black (BK)
Fixation Method screw-hole
Material Aluminium alloy (AL), Chloroprene Rubber (CR)
PART DESCRIPTION ALU14C-AL/CR-BK

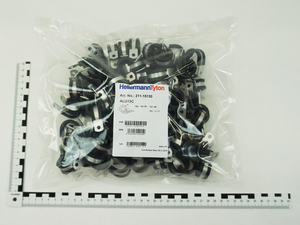

Pack Content 100pcs.
Package Content packed in pcs.
Product Family Alu-P-Clamp with / without chloroprene insert
Product Group Aluminium P-Clamps
Type ALU14C
Variant Closed
Bundle Diameter max (metric) 19.1mm
Fixing Hole Centres (F2) 21.5mm
Fixing Hole Centres (F3) 5.5mm
Nominal ∅ 19.1mm
Radius (R) 2.8mm
Wall (WT) 4.5mm
Wall (WT2) 1.3mm
Width (W) 16.3mm
Width (W2) 12.7mm
for Hole ∅ (FH) 5.2 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Nato number 5340-12-146-8717
Operating Temperature -20 °C to +80 °C
ROHS compliant Yes
Specifications
UV-Stabilised Yes
GTIN-13 / EAN 4031026129167
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0117
Packaging 1 - Weight (kg) 0.912062kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.33m
Packaging 3 - Qty 500
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0198
Packaging 3 - Weight (kg) 4.88531kg
Packaging 3 - Width (m) 0.24m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 20000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 216.44kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121702
