30/09/2025

Connector clip for hole (oval), EWCAP-005-7, black, 10000pcs.
Art.-No. 151-02076 | CCIVSFT6.5x130-PA66HIRHSUV-BK |

Copied
Connector clip with arrowhead mount.

    • Connector easily installed by simply pushing into place
    • Connection can be released non-destructive
    • Easy assembly, just shuffle manually
    • Oval connectors offer twist protection
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The connector clip used here have been desgined for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Fixation Method arrowhead
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION CCIVSFT6.5x130-PA66HIRHSUV-BK
    Package Content 10000pcs.
    Package Content packed in pack
    Product Family Connector clip with arrowhead mount
    Product Group Connector Clips for Oval Holes
    Type CCIVSFT6.5x130
    UV-Stabilised Yes

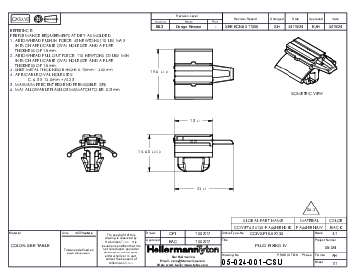

    Height (H) 14.6mm
    Length (L) 23.0mm
    Length (L2) 15.0mm
    Panel Thickness 0.03 - 0.12"
    Panel Thickness max. 0.7 - 3.0mm
    Panel Thickness max. (imperial) 0.12"
    Panel Thickness min. (imperial) 0.03"
    Width (W) 19.6mm
    for Hole ⌀ (FH) 6.5 x 13.0 mm
    for Panel Thickness min - max 0.7 - 3 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026598994
    Packaging 1 - Qty 10000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 5.53kg
    Packaging 3 - Height (m) 0.216m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0521m³
    Packaging 3 - Weight (kg) 12.93kg
    Packaging 3 - Width (m) 0.396875m
    UNSPSC Key 31162305
