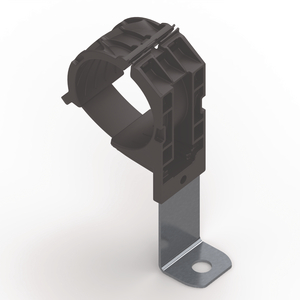

P-clamp short, Dmin=36.0mm, Dmax=51.0mm, ⌀8.31 mm, 180°, black, 20pcs.
Art.-No. 151-03044 | RCD180SM8-PA66HIRHSUV/ST/ZN-BK |

Ratchet P-Clamp D-Series for bundle diameters from 35.1 mm to 51.0 mm
One-piece ratchet closure design allows for easy installation during pre- or final assembly
Multiple configurations handle a wide range of diameters and applications, reducing part inventory
Clamp interior is designed to guide and center bundle to reduce pinching
Easy release feature allows for quick adjustments and maintenance
Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray

Request your individual offer now

Request quote

More products in this product group:

Application	The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations.
Colour	Black (BK)
Fixation Method	Screw Mounting
Key product features	vibration absorbing, reusable, removable, for multiple routing
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Steel (ST), Zinc plated (ZN)
Min.Tensile Strength	445N
Mounting Screw Type	M8 Screw
PART DESCRIPTION	RCD180SM8-PA66HIRHSUV/ST/ZN-BK
Package Content	20pcs.
Package Content packed in	pack
Product Family	For bundle diameters from 36.0 mm to 51.0 mm, D-Series
Product Group	Ratchet P-Clamp
Type	RCD180SM8
UV-Stabilised	Yes
Variant	Short

UNSPSC Key

39121702
