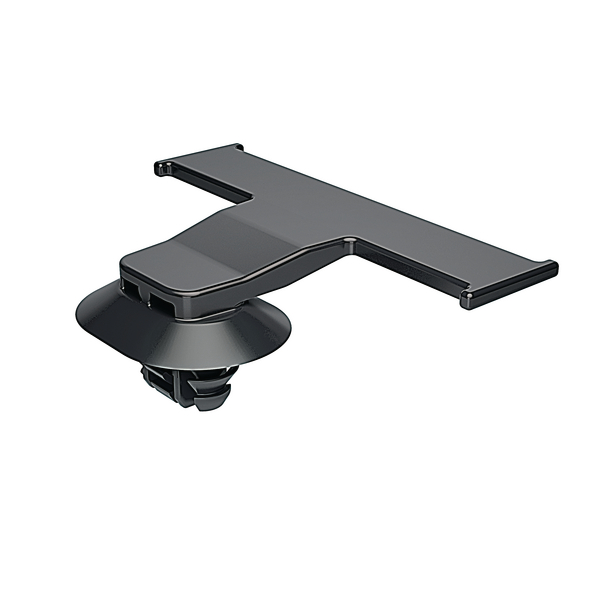

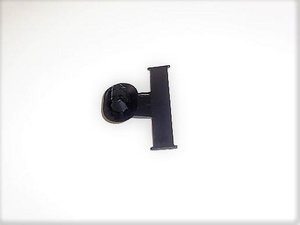

Bundling clip for hole (oval), L=50.0mm, SO=20.0mm, black, 1000pcs.
Art.-No. 151-02262 | SOC13FTOVAL-PA66HIRHS-BK Details

  • Simple installation, tool-free
  • Is attached to the bundle element with cable ties or adhesive tape
  • The oval base geometry serves as anti-twist protection and for defined cable routing

Request your individual offer now

Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
Colour Black (BK)
Fixation Method Fir Tree for oval holes
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION SOC13FTOVAL-PA66HIRHS-BK
Pack Content 1000pcs.
Package Content packed in carton
Product Family Oval holes
Product Group Bundling Clips with Fir Tree for Distance Routing
Type SOC13FTOVAL
Bundling Bar Length 50.0mm
Fixing Hole Shape Oval
Length (L) 50.0mm
Length (L2) 20.0mm
Offset Length 20.0mm
Panel Thickness 0.02 - 0.16"
Panel Thickness max. 0.6 - 4.0mm
Panel Thickness max. (imperial) 0.16"
Panel Thickness min. (imperial) 0.02"
for Hole ∅ (FH) 6.5 x 12.5 mm
for Panel Thickness min - max 0.6 - 4 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026491226
Packaging 1 - Height (m) 0.095m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01689
Packaging 1 - Weight (kg) 2.102135kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 6000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 13.43281kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 72000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 182.184kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121702
