Helashrink 200 Series
Art.-No. 402-06037 | 206-1-GW24-PO-X-BK |  Details

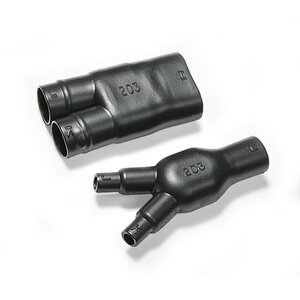

203-1 supplied / fully recovered.

    • Mechanical tension relief in cable harnesses
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Application Tool H6100, E4500, CHG900
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    Pack Content 1pc.
    Package Content packed in bag
    PART DESCRIPTION 206-1-GW24-PO-X-BK
    Product Family Helashrink 200 Series
    Product Group 2-Way Outlet Shapes, VG style
    Variant For 2-core cables
    Flexibility semi rigid
    HW ± 30 % 1.5mm
    JW nom. 1mm
    JW ± 30 % 1.0mm
    JW/KW ± 30% 1mm
    JW/KW ± 30% 1mm
    P ± 10 % 41mm
    P ±10%=overall length 41mm
    R nom. 22mm
    R ± 10 % 19mm
    S nom. 19mm
    ∅H max. b 6mm
    ∅H min. a 13mm
    ∅J max. b 3mm
    ∅J min. a 7mm
    ∅J/K max. b 3mm
    ∅J/K min. a 7mm
    ∅K max. b 3mm
    ∅K min. a 7mm
    Adhesive W24
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -75 °C to +150 °C
    Specifications
    GTIN-13 / EAN 5022660444371
    Packaging 1 - Height (m) 0.015m
    Packaging 1 - Length (m) 0.130m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0002m³
    Packaging 1 - Weight (kg) 0.0050kg
    Packaging 1 - Width (m) 0.100m
    UNSPSC Key 39121721
