28/07/2021

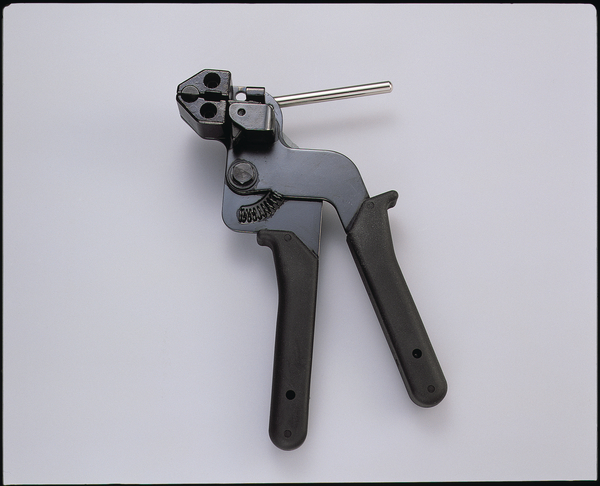

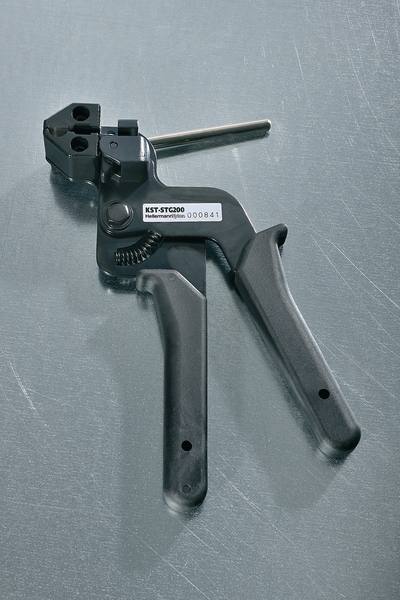

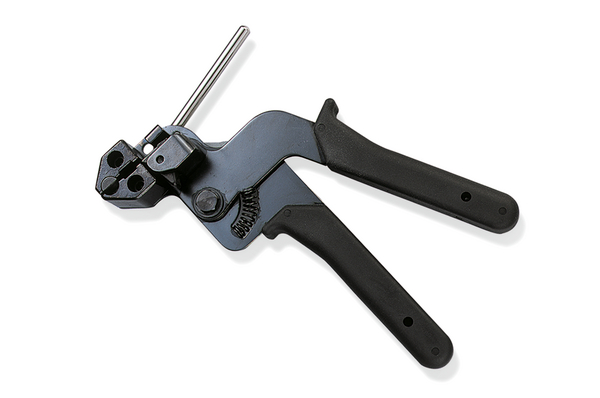

Manual tensioning tool for metal ties MBT-Series : KST-STG200

Manual Tensioning Tool for Metal Ties up to 12.3 mm strap widthArticle number: 110-09950

Features

  • Tough metal tool
  • Operator controlled tensioning
  • Cut off by pulling the hand lever

Certifications & Approvals

Application

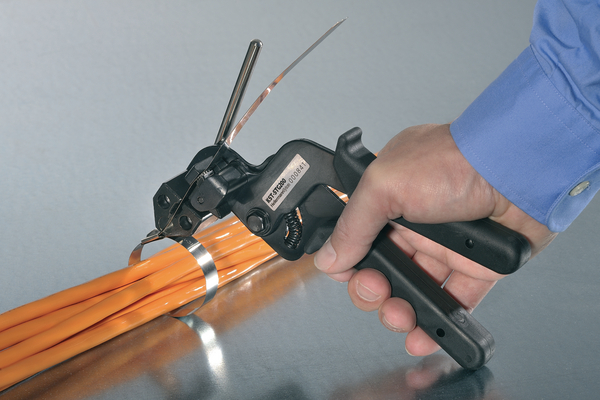

The KST-STG200 application tool is designed for installing heavy duty stainless steel cable ties within a range of industries such as shipbuilding, oil rigs, mining and mass transit. The tensioning strength can be adjusted while pulling the trigger. The tool is easy to handle and far more reliable than trying to tension the ties by hand.

Colour Metal (ML), Black (BK)
For Cable Tie Width 4.5 - 12.3mm
Operation manually
Pack Content 1pc.
Package Quantity per box
PART DESCRIPTION KST-STG200-MET-BK/ML
Product Family KST-STG200 up to 12.3 mm strap width
Product Group Manual tensioning tool for metal ties MBT-Series
Short Description Manual Processing Tool for Stainless Steel Cable Ties - KST-STG200
Strap Thickness max. 0.3mm
Tool property Manual clipping
Tool suitable cable tie material Stainless steel
Max. Tie Width (G) 12.3mm
Tension Setting Manual
ELV compliant (Article 4 - 2) YES
Hazardous good No
Material Metal (MET)
Material MET
Specifications
GTIN-13 / EAN 4944387938036
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.22m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00129
Packaging 1 - Weight (kg) 0.562001kg
Packaging 1 - Width (m) 0.13m
Packaging 3 - Height (m) 0.405m
Packaging 3 - Length (m) 0.454m
Packaging 3 - Qty 20
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0605
Packaging 3 - Weight (kg) 12.07002kg
Packaging 3 - Width (m) 0.329m
Packaging 4 - Height (m) 0.954m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 200
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.916
Packaging 4 - Weight (kg) 141.7kg
Packaging 4 - Width (m) 0.8m
