Three-Pronged Pliers for Sleeves and Grommets NA1K/3

NA, Article number: 621-10103

Features

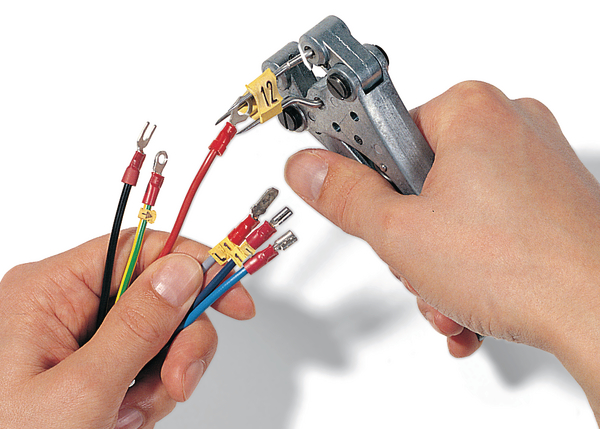

  • To easy affix expandable sleeves of every type onto cables/connectors
  • Sleeve simply slide onto the prongs
  • Push pliers and pull over cable
  • Close pliers, sleeve is placed easily
  • Hellerine lubricant recommended for easy operation

Certifications & Approvals

Application

Three-pronged expansion tools are used to ensure speedy and precise application of expandable markers and sleeves.

NA is suitable for following markets and industries

  • Rail Transportation Sector Rail Transportation Sector
  • Electronics Industry Electronics Industry
  • Aerospace Industry Aerospace Industry
  • Shipbuilding Shipbuilding
  • Defence Industry Defence Industry
Colour Metal (ML)
Description Expansion tool NA1/3
GLOBAL PART DESCRIPTION NA1K/3-ML
Package Quantity per pcs.
Product Family NA
Product Group Three-Pronged Pliers for Sleeves and Grommets
Bundle ∅ max. 5.00mm
Bundle ∅ min. 2.50mm
Length (L3) 28.0
Max. length of marker 28mm

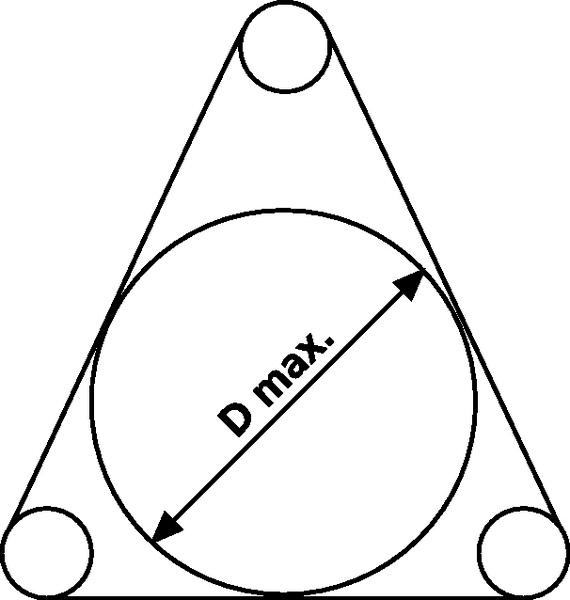

∅ D max. 11.0mm
ELV compliant (Article 4 - 2) YES
Hazardous good No
Specifications
EAN / GTIN 4031026185194
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 0.145m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00082
Packaging 1 - Weight (kg) 0.28kg
Packaging 1 - Width (m) 0.075m
Packaging 3 - Height (m) 0.35m
Packaging 3 - Length (m) 0.57m
Packaging 3 - Qty 50
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0738
Packaging 3 - Weight (kg) 14.5kg
Packaging 3 - Width (m) 0.37m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 600
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 195.0kg
Packaging 4 - Width (m) 0.8m
Weight 0.28kg
