Automatic bundling up to Ø 20 mm : T18RA50

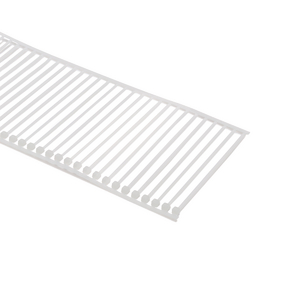

Cable tie bandolier for Automatic Cable Tying Systems 100x2.5 mm, heat stabilised, natural (2000 pcs.), Article number: 120-40019

Features

  • Heat stabilised cable ties (PA66HS) in all colours for temperatures up to +105 °C
  • Available in bandoleers of 50 cable ties or reels of 3,500 cable ties
  • Repetitive tension on the bundles
  • Easily recyclable

Certifications & Approvals

Application

The inside-serrated cable ties are designed for use specifically in the automatic cable tying systems. The Autotool 2000 CPK is ideally suited for handling high volumes applications in wire harness facilities, automotive and industrial companies as wells as the packaging sector.

Cable ties for Autotool 2000 Series is suitable for following markets and industries

  • Aerospace Industry Aerospace Industry
  • Automotive Industry Automotive Industry
  • Chemical Industry Chemical Industry
  • Defence Industry Defence Industry
  • Electronics Industry Electronics Industry
  • Food Industry Food Industry
  • Rail Transportation Sector Rail Transportation Sector
  • Shipbuilding Shipbuilding
  • Solar Energy Sector Solar Energy Sector
  • Telecommunication Telecommunication
  • Wind Energy Sector Wind Energy Sector

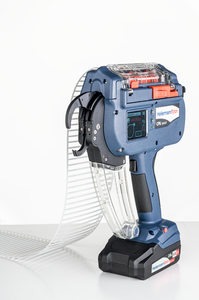

Application Tool Autotool 2000 CPK
Colour Natural (NA)
Content Bandoleer with 50 cable ties
Pack Content 2000pcs.
Package Quantity per carton
PART DESCRIPTION T18RA50-PA66HS-NA
Power Supply unit Input: 100-240 V a.c., 50/60 Hz Output: 25.2 V d.c., max. 150 W
Product Family Cable ties for Autotool 2000 Series
Product Group Automatic bundling up to Ø 20 mm
Tool suitable cable tie material Plastic
Bundle ∅ max. 20.0mm
Bundle ∅ min. 0.7mm
Length (L) 100mm
Min.Tensile Strength 80N
Width (W) 2.5mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Material PA66HS
Operating Temperature - °C -40 °C to +105 °C, (+145 °C, 500 h)
Specifications
Specifications ANSI/UL 62275
UL OCD link Link
UL Type 11
UL-File Number E65344
EAN / GTIN 4031026335308
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.55m
Packaging 1 - Qty 2000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00605
Packaging 1 - Weight (kg) 0.619823kg
Packaging 1 - Width (m) 0.22m
Packaging 3 - Height (m) 0.287m
Packaging 3 - Length (m) 0.46m
Packaging 3 - Qty 20000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0433
Packaging 3 - Weight (kg) 6.78823kg
Packaging 3 - Width (m) 0.328m
Packaging 4 - Height (m) 1.106m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 400000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.062
Packaging 4 - Weight (kg) 156.8kg
Packaging 4 - Width (m) 0.8m
Weight 0.6kg
