Aluminium frame mount for Ziegler, W=13.0mm, T=3.5mm, black, 500pcs.
Art.-No. 151-02942 | ACFM1W13PT3.5-PA66/6HIRHS-BK 세부

  • Quick and easy to install (quarter-turn fixing)
  • 2-way cable tie entry, allowing cables to be fixed lengthways or sideways to the profile
  • Curved design ensures that cables are supported centrally to the mount
  • Secure fixing once installed
  • Suitable for cable ties up to 8 mm wide
Show more
Application The ACFM1W13PT3.5 is specially designed for the Ziegler profile with a T-slot width of 13 mm and external dimensions of 45 mm. The fact that no mounting hole is necessary, the installation and handling of the ACFM is very simple. The Aluminium frame mount is firmly fixed at the favoured place with a quarter turn and then fits firmly. Can be easily loosened and repositioned at any time.
Colour Black (BK)
Fixation Method Profile rail
For Ties T50 T80 T120 X80 X120 Q50 Q120
Material Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS)
Pack Content 500pcs.
Package Content packed in bag
PART DESCRIPTION ACFM1W13PT3.5-PA66/6HIRHS-BK
Product Family For Ziegler profile 13 mm
Product Group Fixing elements for aluminium frames
for Panel Thickness min - max 3.5 - 3.5 mm

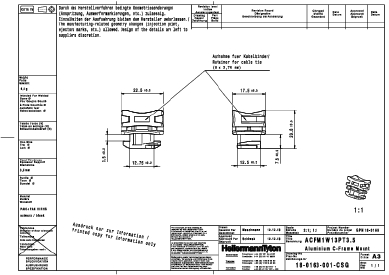

Height (H) 13.3mm
Height (H2) 20.8mm
Length (L) 17.5mm
Max. Tie Width (G) 8.0mm
Panel Thickness max. 3.5mm
Width (W) 22.5mm
Width (W2) 12.75mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Specifications
GTIN-13 / EAN 4031026624730
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 1.903815kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 3000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 12.07289kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 262.48kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121717
