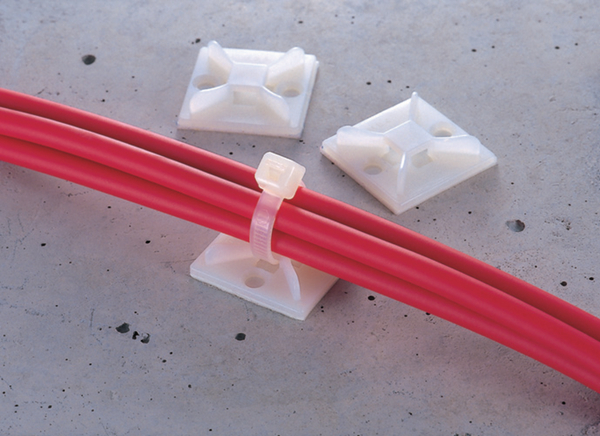

Cable tie mount for adhesive use, Wmax=5.5mm, ⌀4.2 mm, Adhesive, natural, 100pcs.


Art.-No. 151-00519

| BMC30-PA66-NA

 |

Copied
  • Has excellent initial adhesion even under the working environment of low temperature (approx. 0 ℃). such as steel sheet and concrete of the cover of winter, even under the work environment of low temperature (0 ℃ degree), excellent initial adhesion is obtained.
  • BMC30 Tape Peeling paper color is white.
Colour Natural (NA)
Fixation Method Screw Mounting and Adhesive
Material Polyamide 6.6 (PA66)
Mounting Screw Type Adhesive
PART DESCRIPTION BMC30-PA66-NA
Pack Content 100pcs.
Package Content packed in bag
Product Family BMC30
Product Group Low-temperature adhesive and concrete mount-base
Strap Thickness max. 1.6
Type BMC30
Typical Application Fixiing cableties in low temperature places and climates.
Fixing Hole Centres (F) 20.0mm
Height (H) 6.5mm
Length (L) 28mm
Load max. 9.8N
Max. Tie Width (G) 5.5mm
Width (W) 28.0mm
for Hole ⌀ (FH) 4.2 mm
Adhesive Acrylic
Flammability UL 94 V2
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4944387301120
UNSPSC Key 39121717
