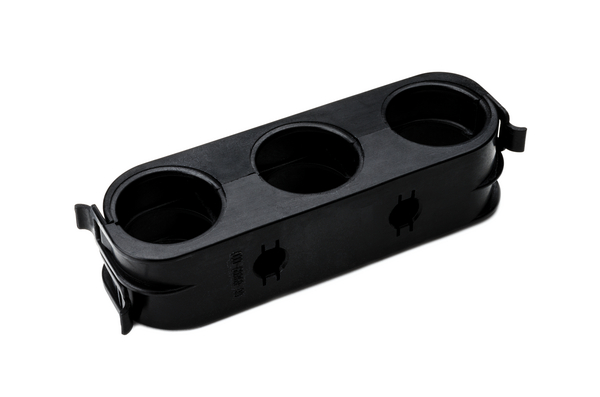

Cable tie mount with pipe/tube holder/for screw fixation, ⌀8.12 mm, black, 500pcs.
Art.-No. 133-00998
| HC3A-PA66HIRGF13-BK
|
Copied

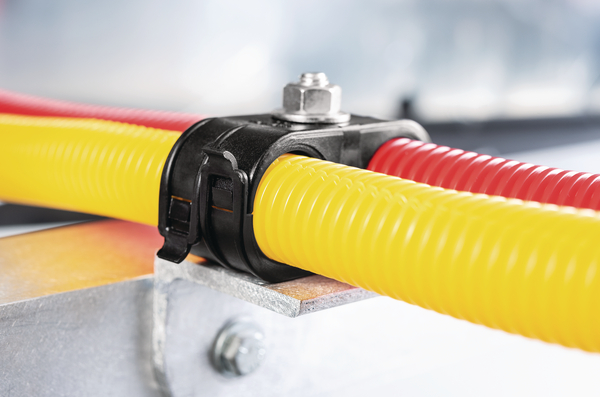

- Separates and secures bundles avoiding abrasion.
- Designed to handle both convoluted tubing and bundles not covered in convoluted tubing.
- Available in a variety of sizes and colors to be easily identified.
More products in this product group:
| Colour | Black (BK) |
| Key product features | for multiple routing, vibration absorbing, lockable |
| Material | Polyamide 6.6, high impact modified, glass-fiber reinforced (PA66HIRGF13) |
| No. of bundles | 3 |
| PART DESCRIPTION | HC3A-PA66HIRGF13-BK |
| Pack Content | 500pcs. |
| Package Content packed in | pack |
| Product Family | multi parallel routing |
| Product Group | Fixing elements for tubes and harnesses |
| Type | HC3A |
| UV-Stabilised | No |
| Variant | Separators |
|
|
|
| GTIN-13 / EAN | 4031026455037 |
| Packaging 1 - Height (m) | 0.27m |
| Packaging 1 - Length (m) | 0.51m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0598995m³ |
| Packaging 1 - Weight (kg) | 10.786001kg |
| Packaging 1 - Width (m) | 0.435m |
| Packaging 2 - Type | carton |

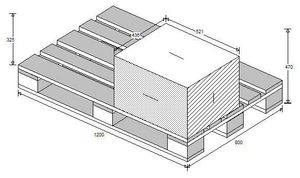

| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 12.1kg |
| Packaging 3 - Width (m) | 0.2921m |

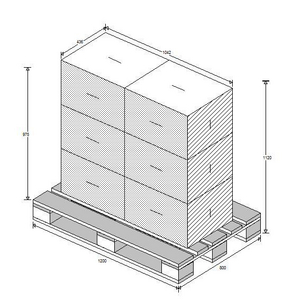

| Packaging 4 - Height (m) | 1.12m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 12000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.075m³ |
| Packaging 4 - Weight (kg) | 90.606kg |
| Packaging 4 - Width (m) | 0.8m |
