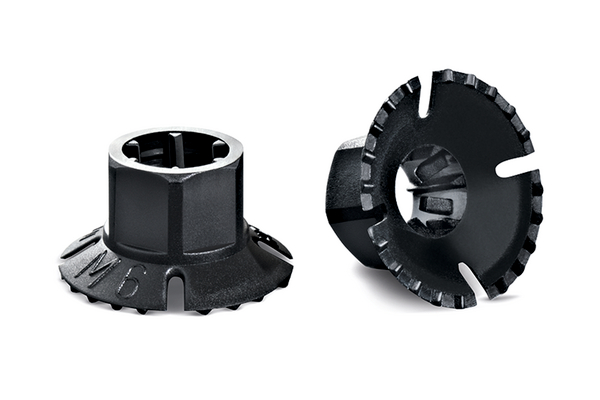

Cable tie mount for screw fixation, ⌀6.0 mm, black, 2000pcs.
Art.-No. 151-02281
| KM6-PA66HIR-BK
|
Copied
- Must faster assembly than traditional metal hexagonal nuts
- Simply pushed onto bolt by hand
- Easily opened at any time using normal spanner
- Available for both 5 mm and 6 mm ISO threaded bolts
More products in this product group:

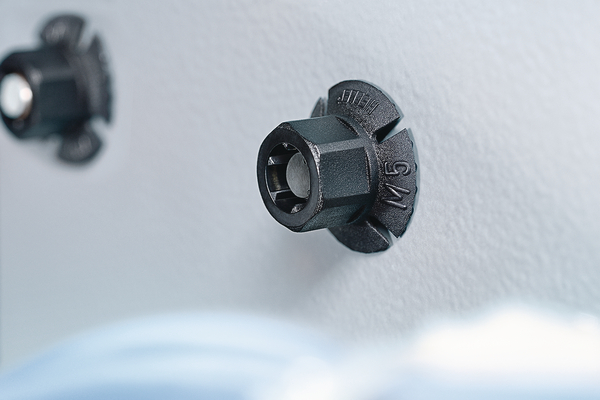

| Application | KM plastic nuts can be used in virtually all applications where metal nuts may have been used - offering benefits in speed of application, weight saving and corrosion resistance they also offer a secure fixing when subject to vibration. Typical applications can be found in a wide variety of industries from automotive to white goods (domestic appliances). |
| Colour | Black (BK) |
| Fixation Method | with Weld Stud (Mounts) |
| Material | Polyamide 6.6, high impact modified (PA66HIR) |
| PART DESCRIPTION | KM6-PA66HIR-BK |

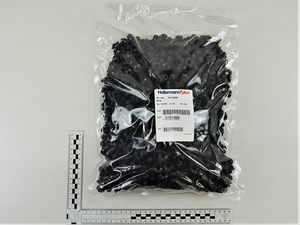

| Pack Content | 2000pcs. |
| Package Content packed in | bag |
| Product Family | KM |
| Product Group | Plastic nuts |
| Type | KM6 |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. |
|
|
|
| GTIN-13 / EAN | 4031026604442 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 2000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01845m³ |
| Packaging 1 - Weight (kg) | 0.861815kg |
| Packaging 1 - Width (m) | 0.41m |
| Packaging 3 - Height (m) | 0.184m |
| Packaging 3 - Length (m) | 0.58m |
| Packaging 3 - Qty | 12000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0406m³ |
| Packaging 3 - Weight (kg) | 5.77089kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.249m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 288000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.199m³ |
| Packaging 4 - Weight (kg) | 159.528kg |
| Packaging 4 - Width (m) | 0.8m |
