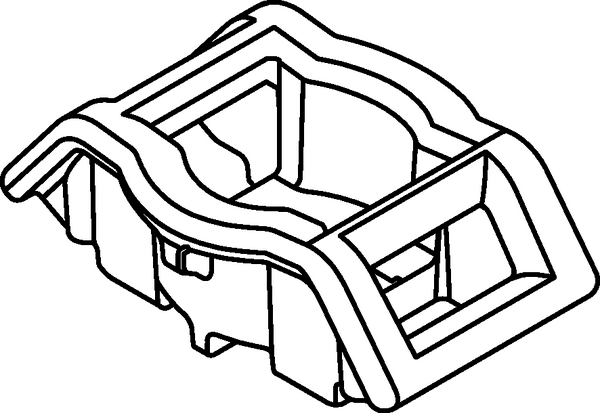

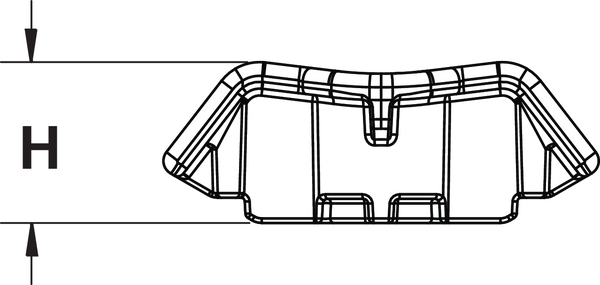

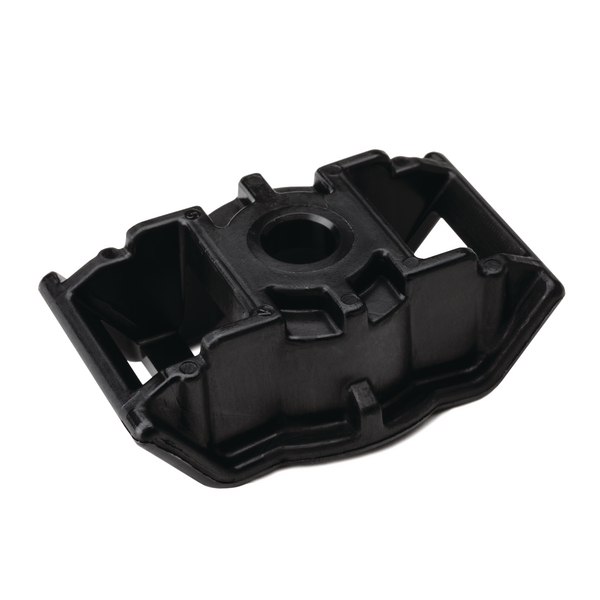

Cable tie mount for screw fixation, ⌀6.7 mm, #1/4" (M6) Screw, black, 500pcs.
Art.-No. 151-03101
| LPM25-PA666V0-BK
Copied
- Separates bundles to help prevent chafing and wear
- Single bundles can be mounted on top of the mount, or two bundles can be separated using the two side saddles; giving the mount versatility
- Low profile design allows mount to be placed in areas where space is limited
More products in this product group:
| Application | Low Profile Mounts secure bundles close to mounting surfaces, making them ideal for applications where bundle mounting space is limited. These are secured with a .25" mechanical fastener, and have a counter bore for easy access with a socket which can be torqued up to 100 in/lbs. The mount accommodates cable ties up to .5" in width. |
| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| For Ties | T50 - T250 |
| Key product features | vibration absorbing |
| Material | Polyamide 6.6/6, V0 (PA666V0) |
| Mounting Screw Type | #1/4" (M6) Screw |
| PART DESCRIPTION | LPM25-PA666V0-BK |
| Pack Content | 500pcs. |
| Package Content packed in | pack |
| Product Family | for parallel separation |
| Product Group | Two way mount for heavy duty applications |
| Type | LPM25 |
| UV-Stabilised | No |
다운로드
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Limited Fire Hazard | Yes |
| Operating Temperature | -40 °C to +120 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ASTM 1354, ASTM E 162, ASTM E 662, NFPA130: 2017 |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
