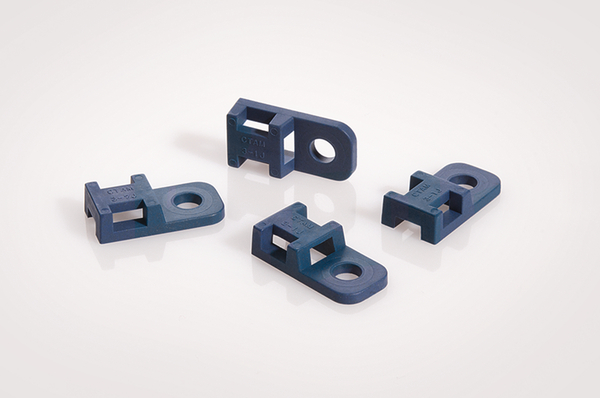

Cable tie mount for screw fixation, Wmax=5.0mm, ⌀5.1 mm, M5 Screw, blue, 100pcs.
Art.-No. 151-01034 | MCCTAM2-PA66MD-BU

Copied
  • Distinctive blue colour for easy visual detection
  • Suitable for applications with minimal space
  • Mounted before cable installation and in line with cable
  • CTAM has 4-way entry design for use in line or at 90° angle to cable run
  • Magnetic detectable – perfect for use with food and pharmaceutical grade detection equipment
  • Total metal dispersion provides consistent detectability, even for small ‘cut-off’ pieces
  • Greatly reduced risk of contamination within food products
  • Supports quality processes around the production of food stuffs
Application Each of these products offers particular benefits, but all are designed for simple yet robust installation in a wide variety of applications. Particularly used in telecoms equipment, switchgear and control cabinets these cable tie mounts are also used within the aerospace and railway industry.
Colour Blue (BU)
Fixation Method Screw Mounting and Rivet
Material Polyamide 6.6, metal detectable (PA66MD)
Mounting Screw Type M5 Screw
PART DESCRIPTION MCCTAM2-PA66MD-BU
Pack Content 100pcs.
Package Content packed in bag
Product Family MCCTAM-Series, for applications where space is limited
Product Group Cable Tie Mounts for food industry, detectable
Type MCCTAM2
Height (H) 5.1mm
Length (L) 20.5mm
Max. Tie Width (G) 5.0mm
Strap Width max. (G) 0.2"
Width (W) 10.2mm
for Hole ⌀ (FH) 5.1 mm
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
GTIN-13 / EAN 4944387109498
UNSPSC Key 31162305
