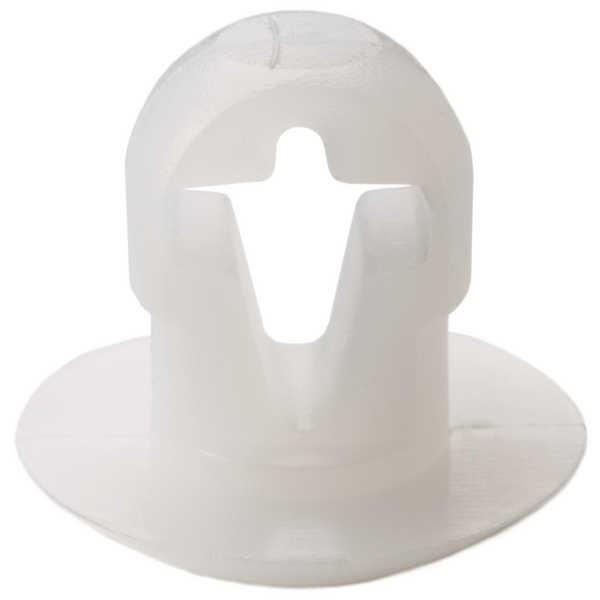

Cable tie mount for hole (round), Wmax=5.0mm, T=3.2mm, ⌀6.25 - 6.55 mm, natural, 100pcs.
Art.-No. 151-00232
| PBM-PA66-NA
|
Copied
- Push Mounts, when used with standard cable ties, provide a permanent bundling solution below a panel.
- The "button" style head is ideal for space constrained areas and is easily inserted through a pre-drilled hole.
More products in this product group:
| Application | The push button mounts are used where the back of the panel is accessible. |
| Colour | Natural (NA) |
| Fixation Method | Push Mount |
| For Ties | T18 - T50 |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | PBM-PA66-NA |
| Pack Content | 100pcs. |
| Package Content packed in | pack |
| Product Group | Push Mount |
| Type | PBM |
| UV-Stabilised | No |
|
|
|
| Height (H) | 10.20mm |
| Height (H2) | 2.0mm |
| Length (L) | 10.7mm |
| Max. Tie Width (G) | 5.0mm |
| Panel Thickness | 0.13" |
| Panel Thickness | 3.2mm |
| Panel Thickness max. (imperial) | 0.12" |
| Panel Thickness min. (imperial) | 0.118" |
| Strap Width max. (G) | 0.2" |
| Width (W) | 6.6mm |
| for Hole ⌀ (FH) | 6.25 - 6.55 mm |
| for Panel Thickness min - max | 3 - 3 mm |
| CE Certification | Yes |
| CSA Certified | No |
| Flammability | UL 94 V2 |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | UL |
| UL File link | Link Link Link Link |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| UL-File Number | E64139 |
