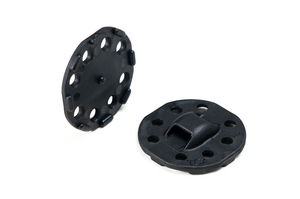

Cable tie mount for adhesive use, Wmax=4.8mm, black, 100pcs.
Art.-No. 151-02255
| PMB5-PA66HS-BK
|
Copied
- PMB5 paste adhesive mount for fixings with paste / liquid adhesive
- Mount geometry offers a good form closure with cured adhesive
- Can even be installed onto uneven surfaces
- Can also be applied in combination with hot-melt adhesive, as mount is made of heat resistant PA66
More products in this product group:
本製品は、その一部です。
| Application | PMB5 paste mount offers a fixing solution wherever screw fixing is not allowed. Due to the design the mount can even be installed onto uneven surfaces. PMB5 paste mount is used in the railway industry as well as in the renewable energy industry. Further applications are in the electrical industry and the production of switching cabinets. The PMB5 paste adhesive mount is suitable for fixings with paste/liquid adhesive. |
| Colour | Black (BK) |
| Fixation Method | Pasting / Stick |
| Key product features | liquid/paste adhesive, uneven surfaces |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | PMB5-PA66HS-BK |
| Pack Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | PMB-Series |
| Product Group | Paste adhesive mount |
| Type | PMB5 |
| UV-Stabilised | No |
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 V2 |
| Halogen-free | No |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+145 °C, 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| GTIN-13 / EAN | 4031026697222 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.21m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00105m³ |
| Packaging 1 - Weight (kg) | 0.23908kg |
| Packaging 1 - Width (m) | 0.2m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 5.5116kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.235m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.186m³ |
| Packaging 4 - Weight (kg) | 131.24kg |
| Packaging 4 - Width (m) | 0.8m |
