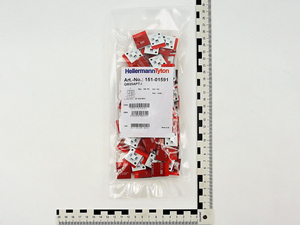

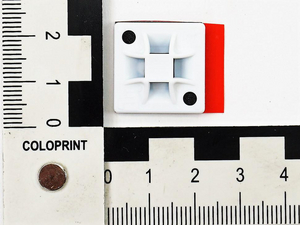

Cable tie mount for adhesive use, Wmax=4.0mm, ⌀3.1 mm, natural, 100pcs.
Art.-No. 151-01591
| QM20APT-I-PA66-NA
|
Copied
This product is not available anymore.
- Q-mounts with homogeneous system of acrylic adhesive
- Perfect for combination with T-Series cable tie
- Very good initial adhesion, increases with time
- Innovative fixing solution for high and low energy surfaces
- Q-Mount base locks the cable tie in vertical position, means the hands are free to apply cables
Show more
줄이기
More products in this product group:
| Application | Q-mounts are ideally suited for holding cable ties in place. They would perfectly fit to all applications where a reliable and durable fixation is required. With its SolidTack adhesive Q-mounts offer an innovative fixing solution especially for low energy surfaces or if drilling a hole is not possible. Suitable for a wide range of applications on varnished or plastic or metal surfaces in many areas like electrical cabinet, railway, aerospace, automotive and agriculture machinery. |
| Colour | Natural (NA) |
| Fixation Method | Screw Mounting and Adhesive |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | QM20APT-I-PA66-NA |
| Pack Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | SolidTack-Series QM |
| Product Group | Cable tie mounts with high performance adhesive |
| Type | QM20APT-I |
| Adhesive | Acrylate with base of acrylic foam |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 V2 (excluding adhesive) |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Nato number | 5975-12-412-3966 |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| GTIN-13 / EAN | 4031026562711 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 0.275m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00066m³ |
| Packaging 1 - Weight (kg) | 0.08681kg |
| Packaging 1 - Width (m) | 0.12m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 12000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 11.2592kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.235m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 240000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.186m³ |
| Packaging 4 - Weight (kg) | 247.36kg |
| Packaging 4 - Width (m) | 0.8m |
