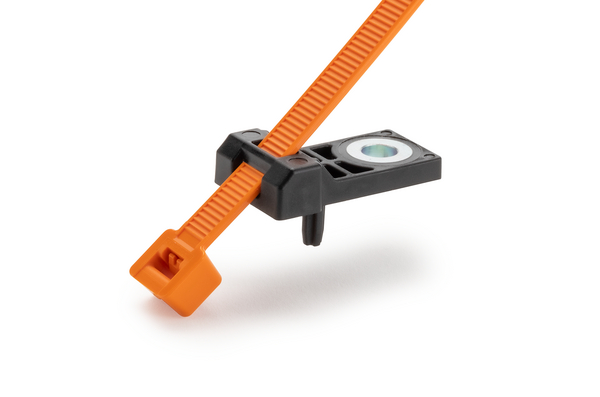

Fixing tie for screw fixation, inside serrated, ⌀5.0-105.0mm, orange/black, 500pcs.
Art.-No. 156-04045 | T120RCPCM6-SET-PA66HIRHS-OG/BK |

Copied
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Orange (OG), High Voltage (HV), Black (BK)
Fixation Method Screw Mount
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Min.Tensile Strength 535N
Mounting Screw Type M6 Screw
PART DESCRIPTION T120RCPCM6-SET-PA66HIRHS-OG/BK
Pack Content 500pcs.
Package Content packed in pack
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T120RCPCM6-SET
Variant Inside Serrated
Bundle ⌀ max. 105.0mm
Bundle ⌀ min. 5.0mm
Height (H) 16.0mm
Length (L) 390.0mm
Strap Width max. (G) 0.3"
Stud ⌀ 0.24"
Width (W) 7.6mm
for Hole ⌀ (FH) 6.2 mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
GTIN-13 / EAN 4031026666068
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 3 - Height (m) 0.20955m
Packaging 3 - Length (m) 0.5175m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0344m³
Packaging 3 - Width (m) 0.3175m
UNSPSC Key 39121703
