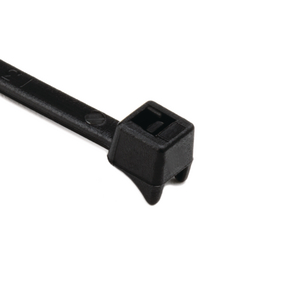

Cable tie inside serrated, 203.2x4.7mm, ⌀1.5-45.0mm, black, 1000pcs.

Art.-No. 112-52111

| CTT60R-PA66HIRHSUV-BK

|

The Clamp Tie head design contains clamping rails to provide full circumferential compression around bundles.

For secure fixing of round and solid shapes.

Curved head design offers a good fit to the bundle
Inside serration for a strong hold onto bundles
Easy application either manually or with a processing tool

Downloads e-Learning

More products in this product group:

Cable ties for hose and gaiter

Base Data

Application	CTT is designed to secure pipes, hoses and gaiters where low pressures are being secured. These ties can be used in many different industries including automotive, white goods manufacturing, medical industry and construction.
Colour	Black (BK)
Identification Plate Position	none
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Min.Tensile Strength	267N
PART DESCRIPTION	CTT60R-PA66HIRHSUV-BK
Pack Content	1000pcs.
Package Content packed in	pack
Product Family	CTT-Series natural and black
Product Group	Cable ties for hose and gaiter
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	CTT60R
UV-Stabilised	Yes
Variant	Inside Serrated

Product Dimensions


Bundle ⌀ max.	45.0mm
Bundle ⌀ min.	1.5mm
Length (L)	203.2mm
Thickness (T)	1.2mm
Width (W)	4.7mm

Downloads

Specifications

CE Certification	Yes
CSA Certified	No
Flammability	UL 94 HB
Operating Temperature	-40 °C to +105 °C
Operating Temperature, 1000h	+160 °C
Operating Temperature, 5000h	+125 °C
Operating Temperature, 500h	+165 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	Yes
UL Recognized (US)	Yes
UL Type	11
UL-File Number	E64139

Logistics and Packaging


GTIN-13 / EAN	4031026414515
Packaging 1 - Qty	1000
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	1.2247kg
Packaging 3 - Height (m)	0.20955m
Packaging 3 - Length (m)	0.5175m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0344m³
Packaging 3 - Weight (kg)	6.38kg
Packaging 3 - Width (m)	0.3175m

More Information

UNSPSC Key

39121703

Accessories
