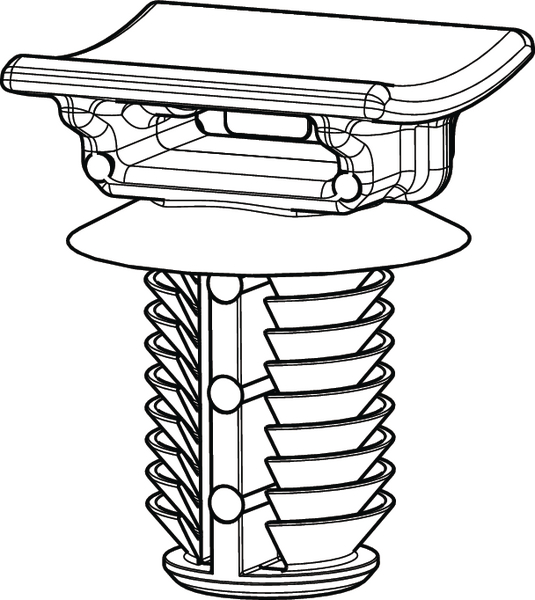

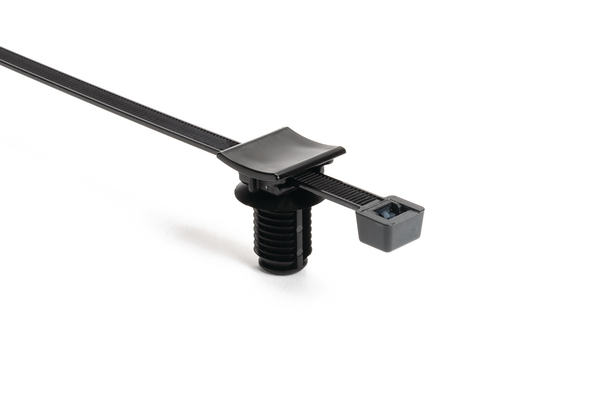

Fixing tie for hole (round), inside serrated, ⌀5.0-55.0mm, black, 1000pcs.
Art.-No. 156-01610
| T120SFT12SET-PA66HS/PA66HIRHSUV-BK
|
Copied
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Min.Tensile Strength | 535N |
| PART DESCRIPTION | T120SFT12SET-PA66HS/PA66HIRHSUV-BK |
| Pack Content | 1000pcs. |
| Package Content packed in | pack |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T120SFT12SET |
| UV-Stabilised | Yes |
| Variant | Inside Serrated |
| Bundle ⌀ max. | 55.0mm |
| Bundle ⌀ min. | 5.0mm |
| Height (H) | 29.70mm |
| Height (H2) | 19.0mm |
| Hole Depth | 0.6mm |
| Hole Depth | 11.0mm |
| Length (L) | 229.0mm |
| Panel Thickness | 0.02 - 0.43" |
| Panel Thickness | 0.6 - 11.0mm |
| Panel Thickness max. (imperial) | 0.43" |
| Panel Thickness min. (imperial) | 0.02" |
| Thickness (T) | 1.8mm |
| Width (W) | 7.6mm |
| Width (W2) | 0.80" |
| Width (W2) | 20.40mm |
| for Hole ⌀ (FH) | 11.6 - 12.4 mm |
| for Panel Thickness min - max | 0.6 - 11 mm |
| for Panel Thickness min - max | 0 - 0.4 " |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
