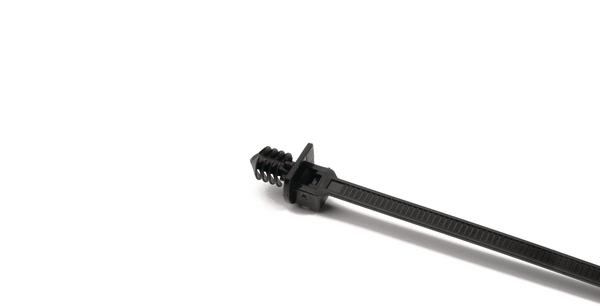

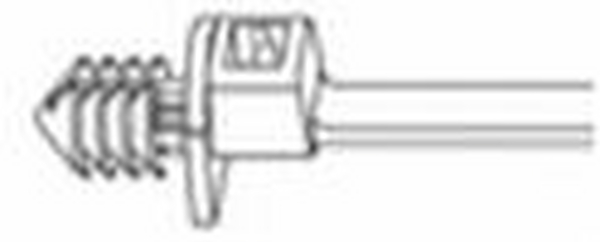

Fixing tie for hole (round), inside serrated, Ø1.5-50.0mm, black, 1000pcs.
Art.-No. 126-03501 | T50RTM25-PA66HS-BK 세부

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more

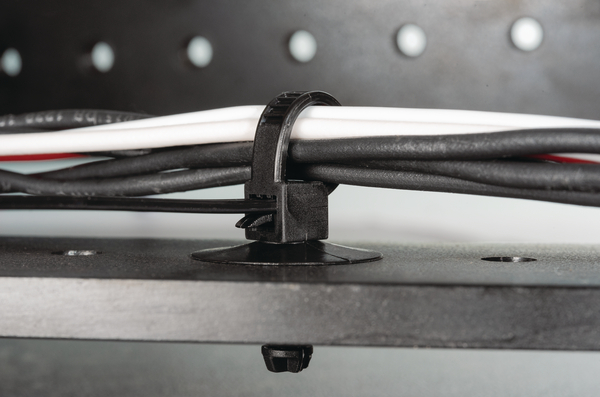

Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Colour Black (BK)
Fixation Method Fir tree for round holes
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS)
Pack Content 1000pcs.
Package Content packed in bag
PART DESCRIPTION T50RTM25-PA66HS-BK
Product Family Fir tree parts FT6
Product Group 1-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) Yes
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 50.0mm
Bundle ∅ min. 1.5mm
Disc ∅ 0.5"
Disc ∅ 12.6mm
for Hole ∅ (FH) 6.2 - 7.0 mm
for Panel Thickness min - max 1.3 - 7 mm
for Panel Thickness min - max 0.1 - 0.3 "
Height (H) 1.3mm
Length (L) 204.7mm
Length of Fir Tree 10.6mm
Min.Tensile Strength 225N
Panel Thickness 0.05 - 0.28"
Panel Thickness max. 1.32 - 7.0mm
Panel Thickness max. (imperial) 0.28"
Panel Thickness min. (imperial) 0.05"
Thickness (T) 1.3mm
Width (W) 4.6mm
CE Certification No
CSA Certified No
Flammability UL 94 V2
Operating Temperature -40 °C to +125 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
GTIN-13 / EAN 4031026421384
Packaging 3 - Height (m) 0.22225m
Packaging 3 - Length (m) 0.60325m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0532
Packaging 3 - Weight (kg) 9.85kg
Packaging 3 - Width (m) 0.396875m
UNSPSC Key 39121703
