30/06/2026

Fixing tie for hole (oval), inside serrated, ⌀5.0-30.0mm, black, 750pcs.


Art.-No. 126-00038

| T50SDOP-PA66-BK

 |

Copied
The flexible 'discs' adjusts to take up variations in panel thickness - ensuring a firm fixing at all times.

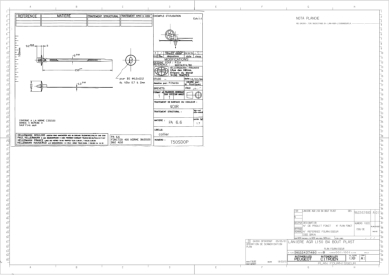

Reference drawing for dimensions only.

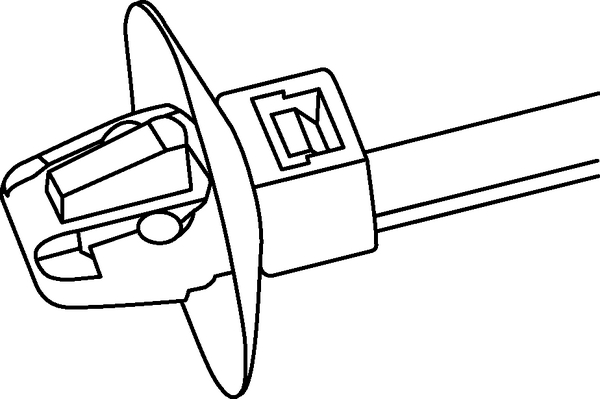

1-piece fixing tie with fir tree, with disc, for oval holes

    • Easy to install without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
    • Cable tie head always situated in a defined position
    • Versions for oval holes feature anti-twist protection
    Downloads
    Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
    Colour Black (BK)
    Fixation Method Arrowhead for oval holes
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50SDOP-PA66-BK
    Pack Content 750pcs.
    Package Content packed in box
    Product Family for oval holes
    Product Group 1-Piece Fixing Ties with Arrowhead, with Disc for oval holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SDOP
    Variant Inside Serrated
    Bundle ⌀ max. 30.0mm
    Bundle ⌀ min. 5.0mm
    Disc ⌀ 22.0mm
    Fixing Hole Shape Oval
    Length (L) 160mm
    Width (W) 5.0mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.7 - 2 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026668178
    UNSPSC Key 39121703
