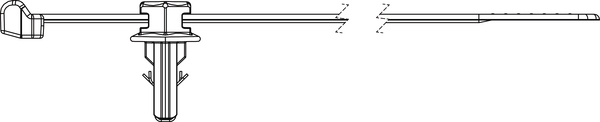

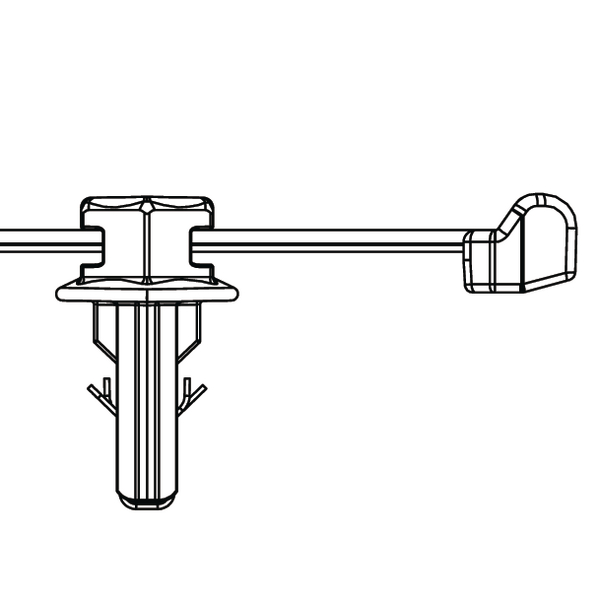

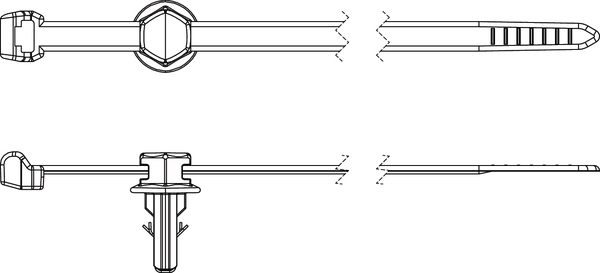

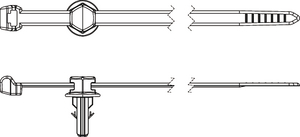

Fixing tie to close hole, outside serrated, ⌀2.5-35.0mm, black, 500pcs.
Art.-No. 156-01807
| T50SOSBHMB-PA66HS-BK
|
Copied
- Delivers high pull-out strength for reliable performance, yet it’s easy to install.
- Reusable fastener can be removed from threaded or nonthreaded holes using a 5/16" hex driver.
- Heat-stabilized material provides excellent resistance to high temperatures.
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Description | HellermannTyton Blind Hole Mount Cable Ties for threaded and nonthreaded holes offer an easy-to-use method for bundling and affixing cables. The two-piece design includes a heat-stabilized cable tie and formula-matched, 1/4" mount that features a low push-in force and aggressively resists pull out. Performs equally well in threaded or nonthreaded blind holes. Mount can slide along cable tie to adjust orientation if needed. Fastener can be removed from hole using a hex driver, ensuring reuse if desired. |
| Fixation Method | Blind Plug |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50SOSBHMB-PA66HS-BK |
| Pack Content | 500pcs. |
| Package Content packed in | pack |
| Type | T50SOSBHMB |
| UV-Stabilised | No |
다운로드
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | No |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +125 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| GTIN-13 / EAN | 4031026591865 |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 1.32kg |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.5175m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0344m³ |
| Packaging 3 - Weight (kg) | 5.9kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Qty | 80000 |
| Packaging 4 - Type | pallet |
