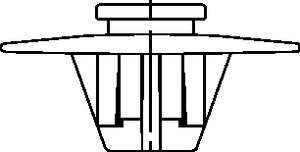

Fixing tie for stud, outside serrated, ⌀32.0mm, black, 500pcs.

Pre-assembled with cable tie and weld stud mounting base
Quick and easy installation
Head rotates into perfect position for installation
'Soft-push' design for tool-free installation
Mushroom-shaped SBH handles insulation or a sound-deadening blanket
SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
SB5 allow lateral tolerance for fixing point

More products in this product group:

Application	Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Black (BK)
Fixation Method	Weld Stud Fixing
Foot Part	Polyamide 6.6, heat stabilised (PA66HS)
Identification Plate Position	none
Material	Polyamide 6.6, heat stabilised (PA66HS)
Min.Tensile Strength	225N
PART DESCRIPTION	T50SOSSBH5-PA66HS-BK
Pack Content	500pcs.
Package Content packed in	bag
Product Family	SBH5 Series
Product Group	2-Piece Fixing Ties for Weld Studs
Tie Closure	plastic pawl
Type	T50SOSSBH5

Flammability	UL 94 V2
Operating Temperature	-40 °C to +105 °C
Operating Temperature Foot Part (Metric)	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
