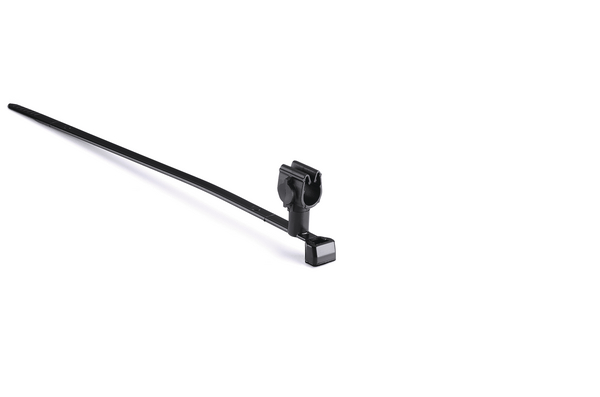

Fixing tie with pipe/tube holder, ⌀5.5-6.8mm, black, 1000pcs.
Art.-No. 156-02250 | T50SVCMOC6M180-PA66HIRHSUV-BK

Copied
Cable ⌀ max 35.0mm
Cable ⌀ min 2.0mm
Colour Black (BK)
Fixation Method Omega Clip
Identification Plate Position none
Key product features lockable, rotatable
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Min.Tensile Strength 225N
PART DESCRIPTION T50SVCMOC6M180-PA66HIRHSUV-BK
Pack Content 1000pcs.
Package Content packed in pack
Product Group 2-piece fixing ties with pipe clip
Type T50SVCMOC6M180
UV-Stabilised Yes
Bundle ⌀ max. 6.8mm
Bundle ⌀ min. 5.5mm
Bundle Diameter Nom. (ND) 6.0 mm
Depth (D) 10.0mm
Height (H) 28.4mm
Length (L) 35.0mm
Length (L2) 13.5mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
GTIN-13 / EAN 4031026717807
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 200.63kg
Packaging 3 - Height (m) 0.20479m
Packaging 3 - Length (m) 0.5159375m
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0332
Packaging 3 - Width (m) 0.314325m
UNSPSC Key 39121702
