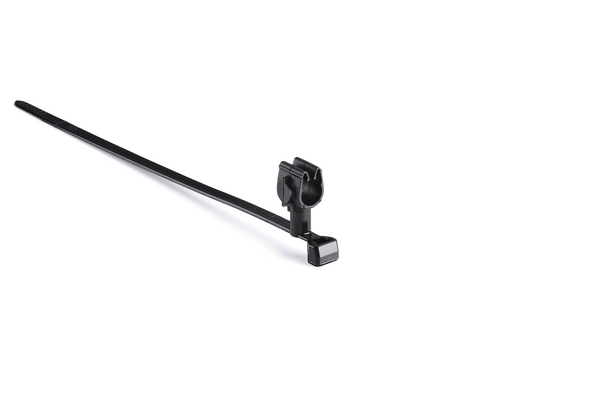

Fixing tie with pipe/tube holder, Ø6.0-8.0mm, black, 2000pcs.
Art.-No. 156-02251 | T50SVCMOC7M180-PA66HIRHSUV-BK 세부

Cable ∅ max 35.0mm
Cable ∅ min 2.0mm
Colour Black (BK)
Fixation Method Omega Clip
Identification Plate Position none
Key product features lockable, rotatable
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Pack Content 2000pcs.
Package Content packed in carton
PART DESCRIPTION T50SVCMOC7M180-PA66HIRHSUV-BK
Product Group 2-piece fixing ties with pipe clip
Bundle Diameter max (metric) 8.0mm
Bundle Diameter Nom. (ND) 7.0 mm
Bundle ∅ min. 6.0mm
Depth (D) 10.0mm
Height (H) 28.9mm
Length (L) 11.6mm
Length (L2) 14.0mm
Min.Tensile Strength 225N
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026717814
Packaging 1 - Weight (kg) 200.65kg
Packaging 3 - Height (m) 0.20479m
Packaging 3 - Length (m) 0.51594m
Packaging 3 - Qty 2000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0332
Packaging 3 - Weight (kg) 4.2kg
Packaging 3 - Width (m) 0.31433m
Packaging 4 - Qty 80000
UNSPSC Key 39121702
