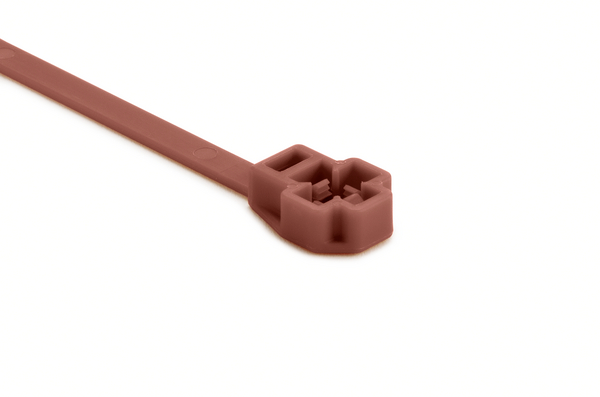

Fixing tie for stud, ⌀5.0-50.0mm, brown, 2500pcs.
Art.-No. 157-00476
| T80ROSLPSB5-6U-PA46-BN
|
Copied
- One-piece fixing ties
- High specification materials
- Superior design
- Suitable for complex applications
More products in this product group:
| Colour | Brown (BN) |
| Fixation Method | Stud Mount |
| Identification Plate Position | none |
| Material | Polyamide 4.6 (PA46) |
| Min.Tensile Strength | 355N |
| PART DESCRIPTION | T80ROSLPSB5-6U-PA46-BN |
| Pack Content | 2500pcs. |
| Package Content packed in | carton |
| Product Group | 1-piece fixing ties for weld studs |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T80ROSLPSB5-6U |
| Typical Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured. |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +130 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| GTIN-13 / EAN | 4031026630199 |
| Packaging 1 - Qty | 2500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 6.825kg |
| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Qty | 2500 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 7.73kg |
| Packaging 3 - Width (m) | 0.2921m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
