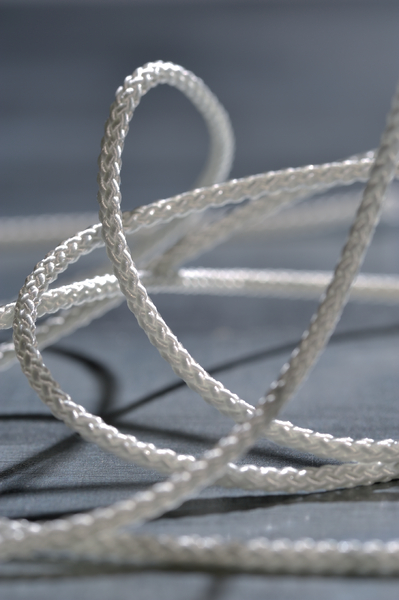

Lacing tape, Round, braided, 1250N, -55 °C to +121 °C, natural, L=200m

Art.-No. 174-00227

| LCHT1A25NA-PA66-NA

|

General purpose lacing cord with high tensile strength

Downloads

More products in this product group:

Lacing cord made of polyamide 6

Base Data

Colour	Natural (NA)
Material	Polyamide 6.6 (PA66)
Min.Tensile Strength	1250N
PART DESCRIPTION	LCHT1A25NA-PA66-NA
Pack Content	200m
Package Content packed in	reel
Product Family	Lacing cord LCHT1A25NA
Product Group	Lacing cord made of polyamide 6
Type	LCHT1A25NA

Product Dimensions

⌀ D max.	2.88mm
⌀ D min.	2.13mm
Length (L)	200m
Weight	2.84g/m

Downloads

Specifications

ELV compliant (Article 4 - 2)	Yes
Finish	A = Uncoated
Hazardous Goods	No
Lacing Shape	Round, braided
Operating Temperature	-55 °C to +121 °C
ROHS compliant	Yes
Specifications
Specifications	MIL-T-43435, NSA8420
Surface Finishing Shortcut	A
Surface finishing features	general purpose

Logistics and Packaging


GTIN-13 / EAN	4031026272061
Packaging 1 - Height (m)	0.16m
Packaging 1 - Length (m)	0.16m
Packaging 1 - Qty	200
Packaging 1 - Type	reel
Packaging 1 - Volume (m³)	0.004096m³
Packaging 1 - Weight (kg)	0.5875kg
Packaging 1 - Width (m)	0.16m
Packaging 2 - Type	carton
Packaging 3 - Height (m)	0.385m
Packaging 3 - Length (m)	0.38m
Packaging 3 - Qty	8
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0556m³
Packaging 3 - Weight (kg)	8.452kg
Packaging 3 - Width (m)	0.38m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	144
Packaging 4 - Type	pallet
Packaging 4 - Weight (kg)	173.136kg
Packaging 4 - Width (m)	0.8m
Reel Length	200m
