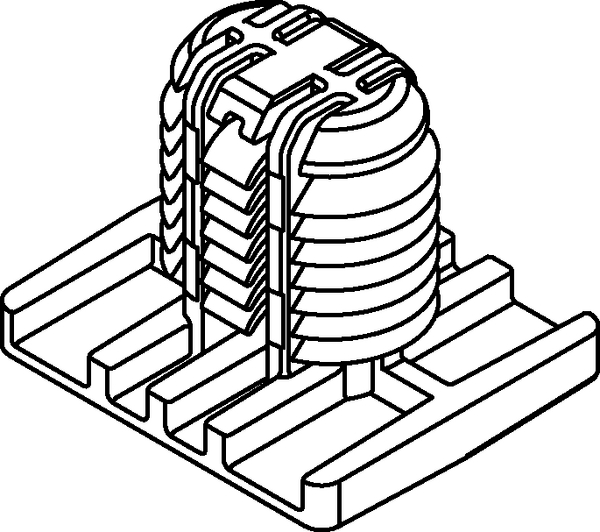

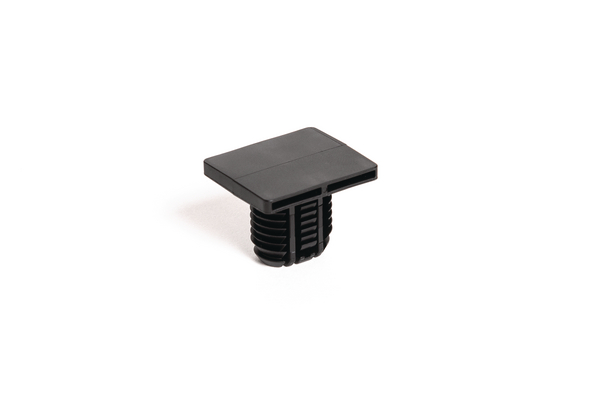

Blind plug, ⌀12 x 17 mm, T=0.6 - 8.0mm, black, 2000pcs.
Art.-No. 133-03691
| 12x17PUSHPIN-PA66HIRHSUV-BK
|
Copied
- Easy assembly without the need of a tool
- Disc of the part covers the hole and minimises ingress of dust, dirt and water
- Standard geometry for example fir tree or arrowhead
More products in this product group:
| Application | Products were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels. Parts are even used for optical reasons. |
| Colour | Black (BK) |
| Fixation Method | Push Mount |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | 12x17PUSHPIN-PA66HIRHSUV-BK |
| Pack Content | 2000pcs. |
| Package Content packed in | pack |
| Product Group | Blind Plugs |
| Type | 12x17PUSHPIN |
| UV-Stabilised | Yes |
| Attach to ⌀ | 12x17 |
| Depth (D) | 24mm |
| Fixing Hole Shape | Oval |
| Height (H) | 21.35mm |
| Hole Depth | 0.6mm |
| Hole Depth | 8.0mm |
| Length (L) | 28mm |
| Panel Thickness | 0.02 - 0.31" |
| Panel Thickness | 0.6 - 8.0mm |
| Panel Thickness max. (imperial) | 0.31" |
| Panel Thickness min. (imperial) | 0.02" |
| for Hole ⌀ (FH) | 12 x 17 mm |
| for Panel Thickness min - max | 0.6 - 8 mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | No |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
