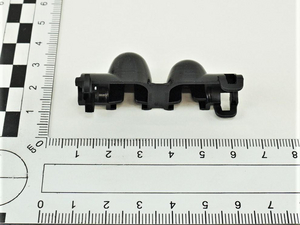

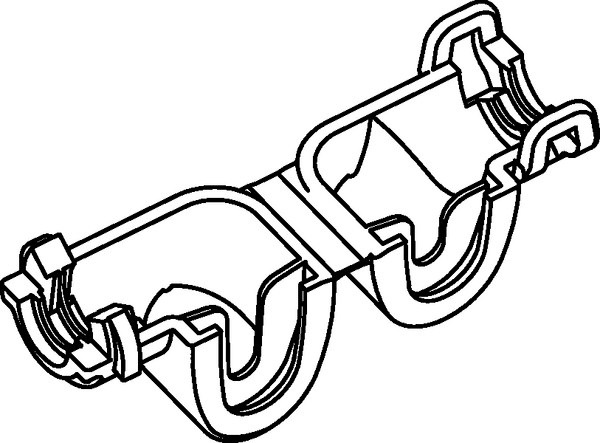

Backshell, nom⌀4.5mm, black, 1500pcs.
Art.-No. 151-03388 | BSRB4KPT90NW4.5-PA66HIRHS-BK |

Copied

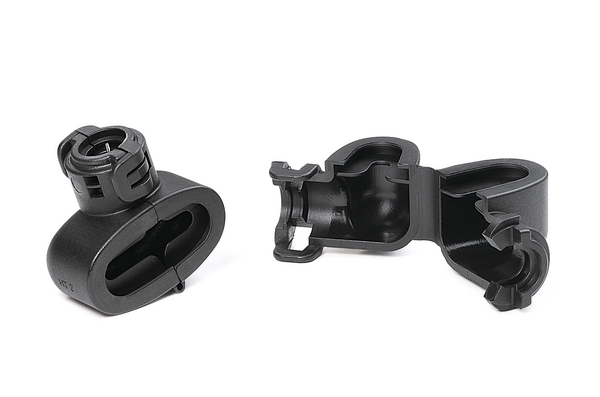

Connector backshell for convoluted tube.
Backshells and IWS Convoluted tube.
Backshells and Fixing slider applicated.
Female Connector with Backshell and convoluted tube will be attached to the panel.
The fixing slider is going to be attached to the connector.
The fixing slider is pushed onto the connector.
Fixing slider simply pushed onto the connector and hols securely on the panel.
Backshell 180° front view
Backshell 180° side view

    • Strain relief for corrugated tubes
    • Four shrouded locks
    • Strapping points fully integrated with cover for maximum retention of harness
    • Nominal diameter printed in backshell
    • Insertion support and pre-catch function audible by clicking simplify the closing, laying of the cables and saves time
    • Corrugated tube is completely enclosed by backshell, so that tube is not bruised in case of using an additional cable tie and cannot slip out of place especially during movement and vibration
    • Available in V0-material (flame retardent) especially for vehicles used for transportation of passengers
    Downloads
    Application The backshells or covers protecting the individual cables and wires from splashing water and dirt.
    Colour Black (BK)
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BSRB4KPT90NW4.5-PA66HIRHS-BK
    Pack Content 1500pcs.
    Package Content packed in bag
    Product Group Connector Accessory Backshells
    Type BSRB4KPT90NW4.5
    Inside ⌀ (ID) 5.9mm
    NW ⌀ 4.5mm
    Nominal ⌀ 4.5mm
    Outside ⌀ (OD) 7.6mm
    Width (W) 17.3mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026658612
    Packaging 1 - Height (m) 0.16m
    Packaging 1 - Length (m) 0.55m
    Packaging 1 - Qty 1500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0572m³
    Packaging 1 - Weight (kg) 4.26038kg
    Packaging 1 - Width (m) 0.65m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 31162305
