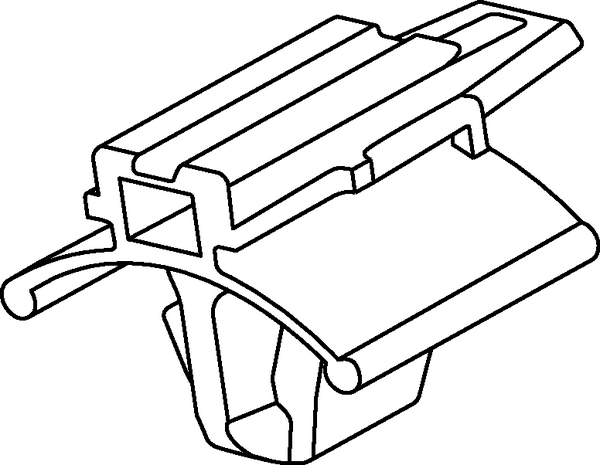

Connector clip, black, 500pcs.
Art.-No. 151-03194 | CC31SFT7KH3X13-PA66HIRHS-BK |

Copied

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC31SFT7KH3X13-PA66HIRHS-BK
    Pack Content 500pcs.
    Package Content packed in bag
    Type CC31SFT7KH3X13
    Height (H) 16.6mm
    Length (L) 23.0mm
    Panel Thickness max. 0.7 mm - 2.5mm
    Width (W) 19.6mm
    for Panel Thickness min - max 0.7 - 2.5 mm
    GTIN-13 / EAN 4031026643717
    UNSPSC Key 31162305
