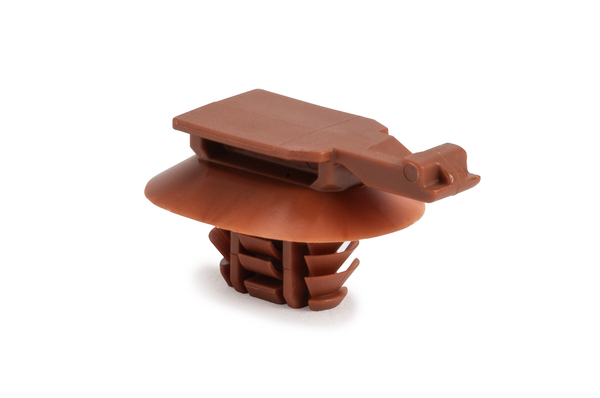

Connector clip for hole (oval), EWCAP-005-11, brown, 4000Bag
Art.-No. 151-02516 | CCOVAL6-PA46-BN |

Short low profile fir tree to avoid obstructions on opposite side of panel.
Oval hole fir tree prevents rotation and provides easy insertion with high extraction in 4 common automotive oval hole sizes.
Fir tree branch design on all four sides makes a 360 degree interface with the panel, creating a more secure fit into the hole.
Connector clip designed to meet USCAR EWCAP-005-11 clip slot specifications.
PA4/6 material allows for use in high-heat applications

More products in this product group:

Application	Connector Clips are designed with various fixing point designs, to accommodate the many connectors out in the market. This specific connector clip is designed for a commonly used automotive connector. The width and the height of the fixation point creates minimal rattle when secured. The innovative design of the fir tree creates an interface with four different size holes that are common in the automotive industry. The fir tree branch design on all four sides makes a 360-degree interface with the panel, creating a more secure fit into the hole.
Colour	Brown (BN)
Fixation Method	Fir Tree for oval holes
Material	Polyamide 4.6 (PA46)
PART DESCRIPTION	CCOVAL6-PA46-BN
Pack Content	4000Bag
Package Content packed in	bag
Product Family	With FirTree
Product Group	Connector Clips for Oval Holes
Type	CCOVAL6
UV-Stabilised	No

Height (H)	15.2mm
Height (H2)	8.05mm

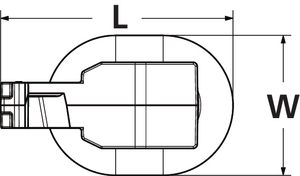

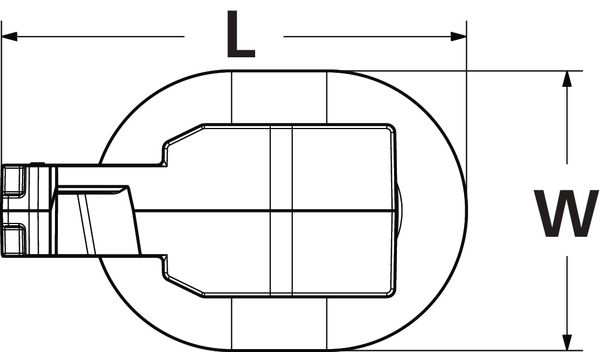

Length (L)	29.34mm
Length (L2)	13.4mm
Panel Thickness	0.02 - 0.12"
Panel Thickness max.	0.6 - 3.0mm
Panel Thickness max. (imperial)	0.12"
Panel Thickness min. (imperial)	0.02"
Width (W)	17.6mm
Width (W2)	0.29"
Width (W2)	7.4mm
for Hole ⌀ (FH)	6.2 - 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max	0.6 - 3 mm
