Connector Clips for round holes : CCSFT6.5

Article number: 151-00775

Features

  • Connector easily installed by simply pushing into place
  • Connection can be released (non-destructive)
  • Arrowhead locks into place for secure fixing at all times

Certifications & Approvals

CCSFT6.5 is suitable for following markets and industries

  • Automotive Industry Automotive Industry
  • Electronics Industry Electronics Industry
Colour Black (BK)
Fixation Method Arrowhead (Small Mount)
Fixing Hole Shape Circular
Pack Content 5000pcs.
Package Quantity per bag
PART DESCRIPTION CCSFT6.5-PA66HIRHS-BK
Product Group Connector Clips for round holes

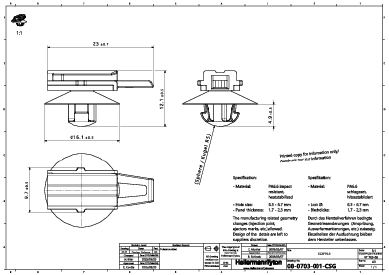

Disc ∅ 16.0mm
Disc ∅ 0.63"
for Hole ∅ (FH) 6.3 - 6.7 mm
for Panel Thickness min - max 1.7 - 2.3 mm
Height (H) 12.1mm
Length (L) 23.0mm
Panel Thickness 0.07 - 0.09"
Panel Thickness max. 1.7 - 2.3mm
Panel Thickness max. (imperial) 0.09"
Panel Thickness min. (imperial) 0.07"
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Material PA66HIRHS
Operating Temperature - °C -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026324845
Packaging 1 - Qty 5000
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 2.941663kg
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 5000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0171
Packaging 3 - Weight (kg) 3.161663kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.171m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 240000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.124
Packaging 4 - Weight (kg) 172.776kg
Packaging 4 - Width (m) 0.8m
Weight 2.875kg
UNSPSC Key 39121702
