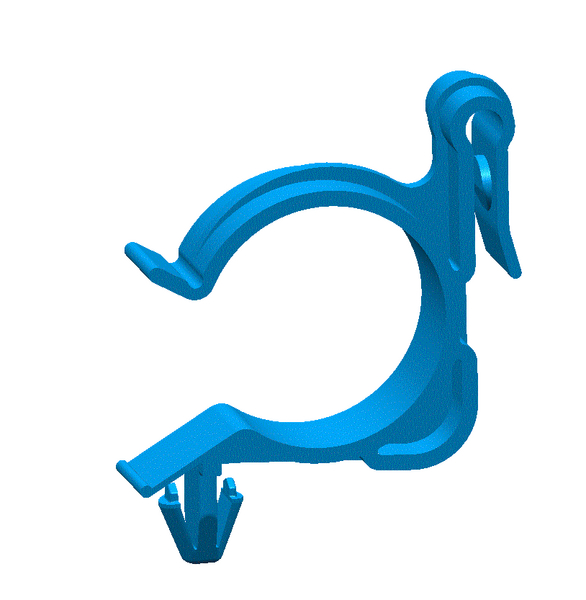

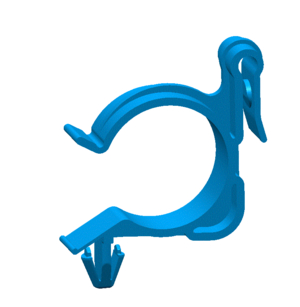

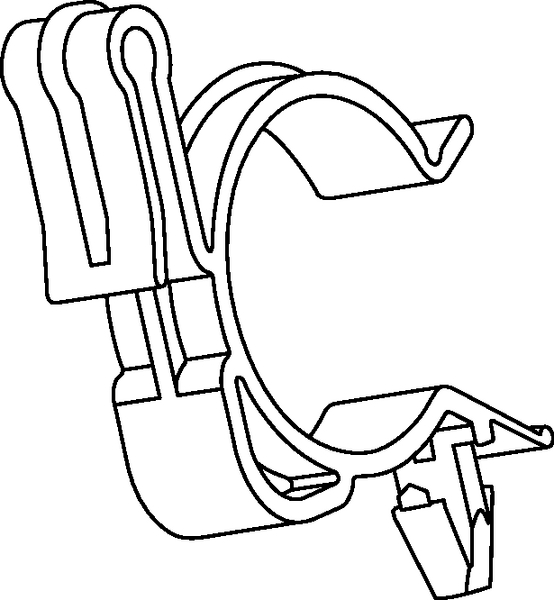

Cable clip for hole (round), ⌀7.8 - 8.2 mm
Art.-No. 151-00026 | CTCLPROFILE-PA66HIRHS-BK |

Copied

    • Fixing elements with fir tree or arrow head
    • Simply clip on a wire or hose
    • Clips to be attached into bore hole
    • Bundles can be released at any time
    Downloads CAD-Download
    Application These clamps are used for example in the automotive industry, in the production of cable harnesses and in the electrical industry. Their quick and easy mounting is the reason for their universal success wherever corrugated tubing and pipes have to be fixed quickly and securely.
    Colour Black (BK)
    Fixation Method arrowhead
    Key product features for convoluted tubes or with rib, for multiple routing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CTCLPROFILE-PA66HIRHS-BK
    Pack Content 500pcs.
    Package Content packed in pcs.
    Product Group Fixing Elements for Corrugated Tubing, with Arrowhead
    Type CTCLPROFILE
    Attach to ⌀ 31.2
    Height (H) 59.5mm
    Length (L) 64.5mm
    Nominal ⌀ 31.2mm
    Width (W) 12.0mm
    for Hole ⌀ (FH) 7.8 - 8.2 mm
    for Panel Thickness min - max 2.3 - 2.7 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Nato number 5340-12-412-7332
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026250427
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.05123m³
    Packaging 1 - Weight (kg) 2.715kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 11.694388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 161.352kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 31162906
