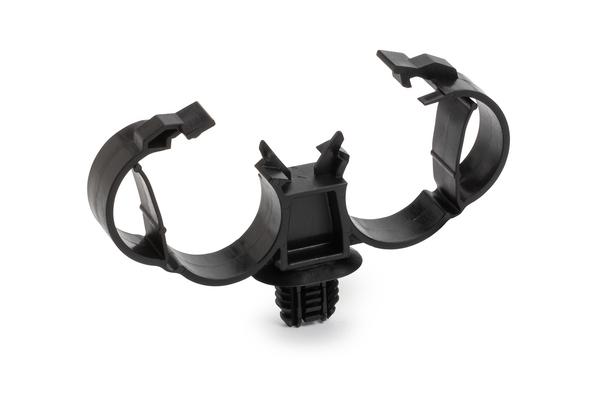

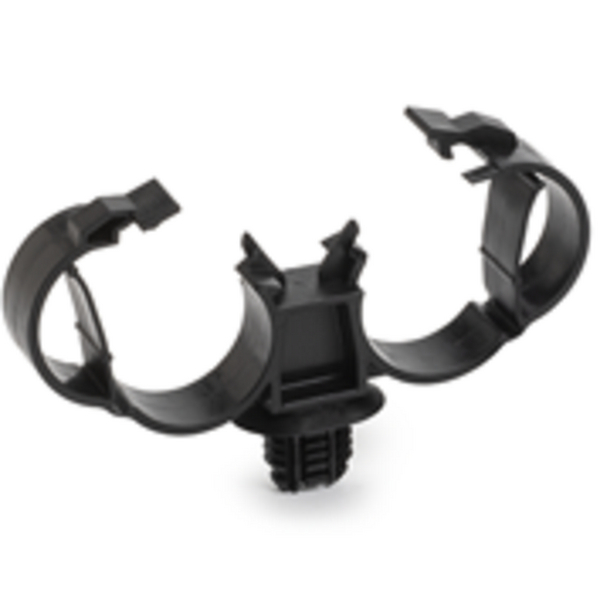

Cable clip, T=0.6 - 6.75mm, ⌀6.2 x 12.2 mm/6.5 x 12.5 mm, Dmin=18.0mm, Dmax=22.0mm, nom⌀=18.0 - 22.0 mm, nom⌀2=18.0 - 22.0 mm
Art.-No. 151-03968
| DBLEClamp18-22FTOVAL-PA66HIRHSUV-BK
|
Copied
| Application | These clips offer fast and easy bundling of convoluted tubes and pipes, especially for the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | DBLEClamp18-22FTOVAL-PA66HIRHSUV-BK |
| Pack Content | 600pcs. |
| Package Content packed in | carton |
| Type | DBLEClamp18-22FTOVAL |
| UV-Stabilised | Yes |
| Bundle ⌀ max. | 22.0mm |
| Bundle ⌀ min. | 18.0mm |
| Bundle Diameter Nom. (ND) | 18.0 - 22.0 mm |
| Bundle Diameter Nom. 2 (ND2) | 18.0 - 22.0 mm |
| Depth (D) | 20.0mm |
| Fixing Hole Shape | Oval |
| Height (H) | 42.6mm |
| Length (L) | 65.5mm |
| Length (L2) | 38mm |
| Panel Thickness | 0.02 - 0.27" |
| Panel Thickness | 0.6 - 6.75mm |
| Panel Thickness max. (imperial) | 0.27" |
| Panel Thickness min. (imperial) | 0.02" |
| for Hole ⌀ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
